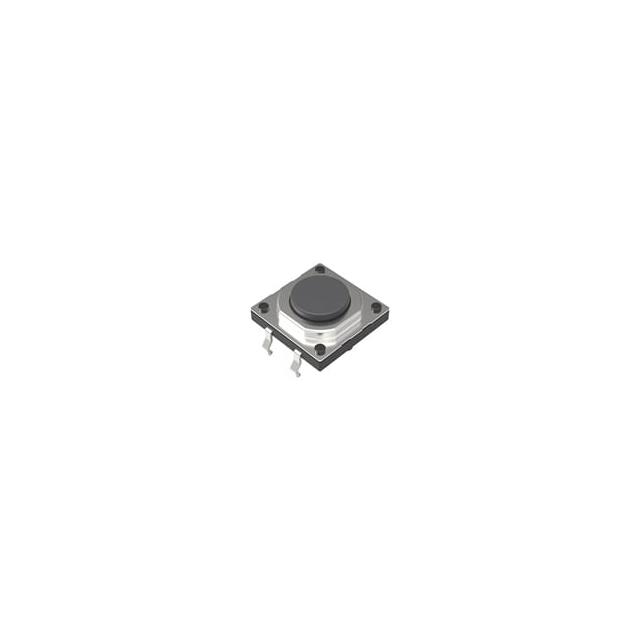

SKQEABA010

Active

Alps Alpine

SWITCH TACTILE SPST-NO 0.05A 12V

Search across all available documentation for this part.

Active

Alps Alpine

SWITCH TACTILE SPST-NO 0.05A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	SKQEABA010

Actuator Height off PCB, Vertical [z]	4.3 mm
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC
Illumination	Non-Illuminated
Mechanical Life	10000000 Cycles
Mounting Type	Through Hole
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-40 °C
Outline [x]	12 mm
Outline [y]	12 mm
Switch Function	Off-Mom
Switch Travel [custom]	0.3 mm
Termination Style	PC Pin

Part	Illumination	Termination Style	Contact Rating @ Voltage	Switch Function	Mounting Type	Actuator Orientation	Outline [y]	Outline [x]	Actuator Type	Switch Travel [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Mechanical Life	Actuator Height off PCB, Vertical [z]
Alps Alpine SKQEABA010	Non-Illuminated	PC Pin	0.05 A 12 VDC	Off-Mom	Through Hole	Top Actuated	12 mm	12 mm	Standard	0.3 mm	90 °C	-40 °C	SPST-NO	10000000 Cycles	4.3 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Through Hole
