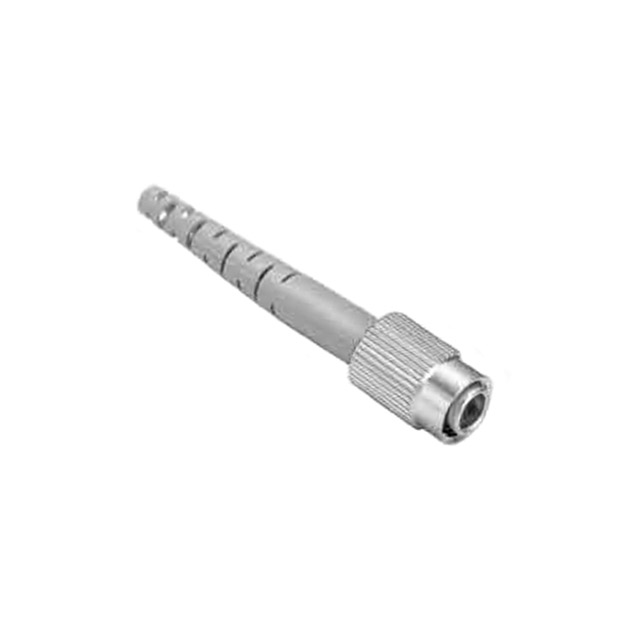

HRFC-P8-H3(61)

LTB

Hirose Electric USA, Inc.

CONN FBR OPTIC PLUG HSG FOR HSC

Deep-Dive with AI

Search across all available documentation for this part.

HRFC-P8-H3(61)

LTB

Hirose Electric USA, Inc.

CONN FBR OPTIC PLUG HSG FOR HSC

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HRFC-P8-H3(61)

Boot Color	Blue
Cable Diameter [diameter]	3 mm
Connector Type	Plug
Features	Strain Relief, Advanced PC Polished
Fiber Cladding Diameter [diameter]	125 Ám
Fiber Core Diameter [diameter]	9.5 Ám
Fiber Core Diameter [diameter]	50 Ám
For Use With/Related Products	HSC Ferrules
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Simplex/Duplex	Simplex

HRFC Series

Part	Body Material	Mating Cycles	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Mounting Type	Housing Color	Simplex/Duplex	Features	Fiber Core Diameter [diameter]	Fiber Core Diameter [diameter]	Boot Color	Material Flammability Rating	Fiber Cladding Diameter [diameter]	For Use With/Related Products	Cable Diameter [diameter]	Ferrule Material	Housing Material	Housing Material	Convert To (Adapter End)	Color	Type	Convert From (Adapter End)	Attenuation Value [custom]	Fiber Core Diameter	Attenuation - Typ
Hirose Electric USA, Inc. HRFC-R1(40)	Brass Nickel Plated	1000	70 °C	-25 °C	Receptacle	Panel Mount Square Flange	Silver	Simplex	Dust Cap
Hirose Electric USA, Inc. HRFC-P8-H3(61)			70 °C	-25 °C	Plug	Free Hanging (In-Line)		Simplex	Advanced PC Polished Strain Relief	9.5 Ám	50 Ám	Blue	UL94 V-0	125 Ám	HSC Ferrules	3 mm
Hirose Electric USA, Inc. HRFC-PA11-D1(40)			70 °C	-25 °C		Panel Mount Square Flange		Simplex					UL94 V-0				Zirconia	Zinc	Brass	FC Receptacle	Silver	Coupler	FC Receptacle
Hirose Electric USA, Inc. HRFC-AT11K-A06(60)																						Dual Window FC Singlemode		6 dB
Hirose Electric USA, Inc. HRFC-P15-H(62)			70 °C	-25 °C	Plug	Free Hanging (In-Line)		Simplex	PC Polished Strain Relief			Blue	UL94 V-0		HSC Ferrules	0.9 mm									9.5 µm 50 µm
Hirose Electric USA, Inc. HRFC-P8-H3(60)			70 °C	-25 °C	Plug	Free Hanging (In-Line)		Simplex	Advanced PC Polished Strain Relief			Blue	UL94 V-0		HSC Ferrules	3 mm									9.5 µm 50 µm
Hirose Electric USA, Inc. HRFC-R2(41)	Brass Nickel Plated	1000	70 °C	-25 °C	Receptacle	Panel Mount Square Flange	Silver	Simplex																		-1 dB
Hirose Electric USA, Inc. HRFC-A2-SF-D1(40)			70 °C	-25 °C		Free Hanging (In-Line)		Simplex	Dust Cap				UL94 V-0				Zirconia	Zinc	Brass	FC Receptacle	Silver	Coupler	FC Receptacle
Hirose Electric USA, Inc. HRFCP-HSCJ-1(61)			70 °C	-25 °C		Panel Mount Square Flange		Simplex	PC Polished				UL94 V-0					Zinc	Brass	SC Receptacle	Silver	Adapter	FC Receptacle
Hirose Electric USA, Inc. HRFC-PA1-D1(40)			70 °C	-25 °C		Panel Mount Square Flange		Simplex					UL94 V-0				Zirconia	Zinc	Brass	FC Receptacle	Silver	Coupler	FC Receptacle

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 7.66

Description

General part information

HRFC Series

Fiber Optic Connector Housing Plug For HSC Ferrules

Documents

Technical documentation and resources

No documents available
