Q-340030005003M

Active

Amphenol Custom Cable

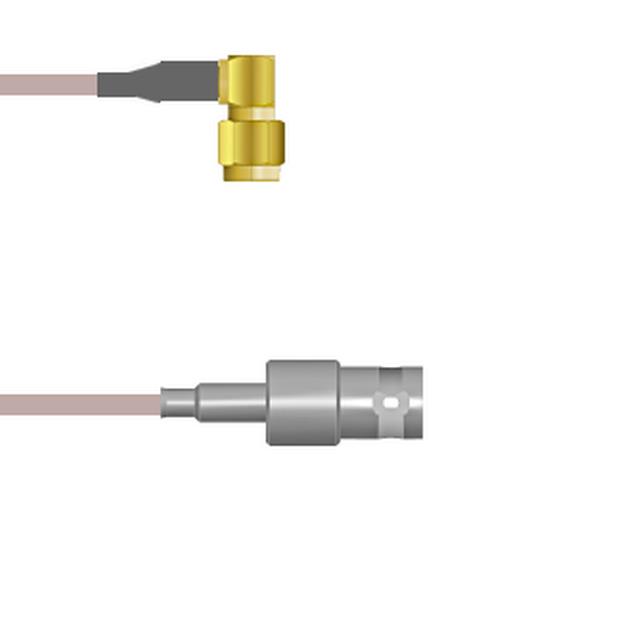

CBL ASSY BNC-SMA JACK-PLUG 9.8'

Search across all available documentation for this part.

Active

Amphenol Custom Cable

CBL ASSY BNC-SMA JACK-PLUG 9.8'

Technical Specifications

Parameters and characteristics for this part

Part	Cable Type	Color	Features	Cable Impedance	Style	1st Contact Gender	Length	Length	Length	1st Connector	Connector Impedance	2nd Contact Gender	Overall Impedance	2nd Connector	2nd Connector Mounting Type	Frequency - Max [Max]	1st Connector Mounting Type	Length [x]	Length [x]
Amphenol Custom Cable Q-340030005003M	RG-316	Copper	Shielded	50 Ohms	BNC to SMA	Female	3 m	118.1 in	9.8 '	BNC Jack	50 Ohms	Male	50 Ohms	SMA Plug Right Angle	Free Hanging (In-Line)	3 GHz	Free Hanging (In-Line)
Amphenol Custom Cable Q-340030005002M	RG-316	Copper	Shielded	50 Ohms	BNC to SMA	Female	2 m	78.7 in	6.6 ft	BNC Jack	50 Ohms	Male	50 Ohms	SMA Plug Right Angle	Free Hanging (In-Line)	3 GHz	Free Hanging (In-Line)
Amphenol Custom Cable Q-3400300031.5M	RG-174	Black	Shielded	50 Ohms	BNC to SMA	Female	1.5 m	59.1 in	4.9 ft	BNC Jack	50 Ohms	Male	50 Ohms	SMA Plug Right Angle	Free Hanging (In-Line)	1 GHz	Free Hanging (In-Line)
Amphenol Custom Cable Q-340030003018I	RG-174	Black	Shielded	50 Ohms	BNC to SMA	Female				BNC Jack	50 Ohms	Male	50 Ohms	SMA Plug Right Angle	Free Hanging (In-Line)	1 GHz	Free Hanging (In-Line)	457.2 mm	457.2 mm
Amphenol Custom Cable Q-340030003003M	RG-174	Black	Shielded	50 Ohms	BNC to SMA	Female	3 m	118.1 in	9.8 '	BNC Jack	50 Ohms	Male	50 Ohms	SMA Plug Right Angle	Free Hanging (In-Line)	1 GHz	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial BNC to SMA RG-316 118.1" (3.0m) 9.8'

Technical documentation and resources

No documents available
