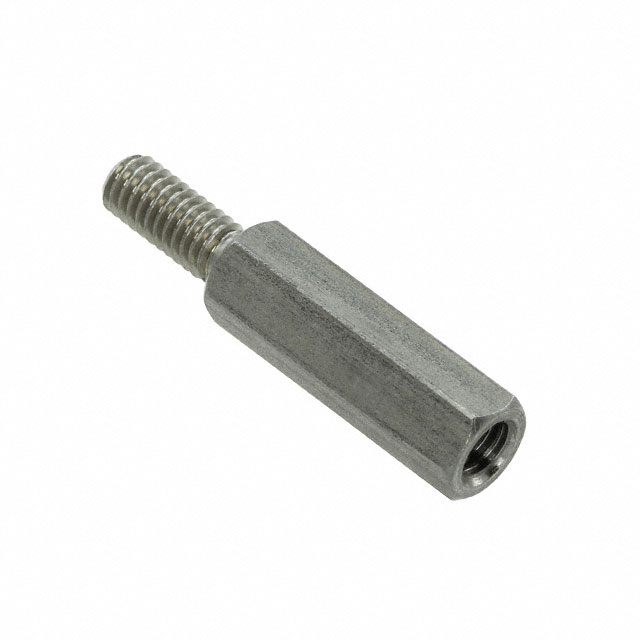

M2155-2545-SS
ActiveRAF Electronic Hardware
6MM HEX X 20MM X M2.5 THD
Deep-Dive with AI
Search across all available documentation for this part.
M2155-2545-SS
ActiveRAF Electronic Hardware
6MM HEX X 20MM X M2.5 THD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M2155-2545-SS |
|---|---|
| Between Board Height | 20 mm |
| Between Board Height | 0.787 in |
| Diameter - Outside [diameter] | 0.236 in |
| Diameter - Outside [diameter] | 6 mm |
| Gender | Male, Female |
| Length - Overall [x] | 0.944 in |
| Length - Overall [x] | 23.97 mm |
| Material | Stainless Steel |
| Screw, Thread Size | M2.5x0.45 |
| Threaded/Unthreaded | Threaded |
| Type | Hex Standoff |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.09 | |
| 5 | $ 2.94 | |||
| 10 | $ 2.86 | |||
| 25 | $ 2.78 | |||
| 50 | $ 2.70 | |||
| 100 | $ 2.55 | |||
Description
General part information
M2155 Series
Hex Standoff Threaded M2.5x0.45 Stainless Steel 0.787" (20.00mm)
Documents
Technical documentation and resources
No documents available
