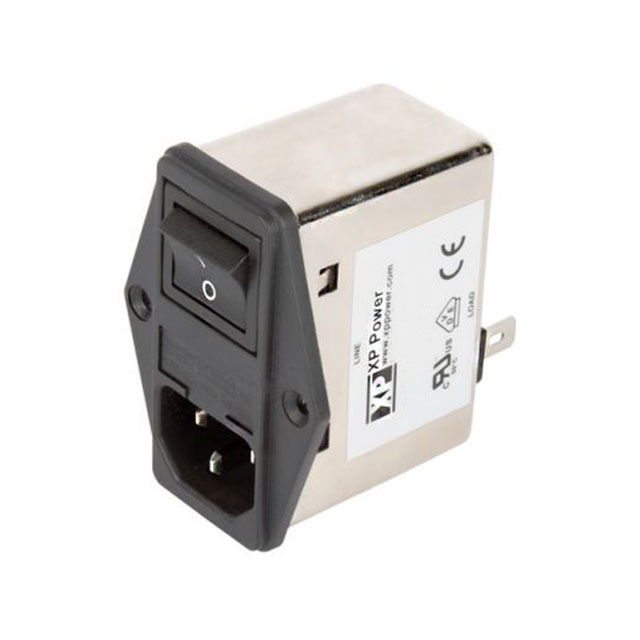

FGSMA10BFR

Active

XP POWER

PWR ENT RCPT IEC320-C14 PANEL QC

Search across all available documentation for this part.

Active

XP POWER

PWR ENT RCPT IEC320-C14 PANEL QC

Technical Specifications

Parameters and characteristics for this part

Specification	FGSMA10BFR

Accomodates a Fuse	True
Connector Style	IEC 320-C14
Connector Type	Male Blades, Receptacle
Current Rating - Filter	10 A
Features	Bleed Resistor, Shielded
Filter Type	Filtered (EMI, RFI) - Commercial, Medical
Fuse Holder, Drawer	Fuse Holder, Twin Fused
Material Flammability Rating	UL94 V-2
Mounting Type	Panel Mount, Flange
Panel Cutout Dimensions [x]	29.4 mm
Panel Cutout Dimensions [y]	60.8 mm
Switch Features	Switch On-Off
Termination	0.25 in
Termination	6.3 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet [Max]	230 VAC
Voltage Rating - Appliance Inlet [Min]	115 VAC

Part	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Connector Type	Voltage Rating - Appliance Inlet [Min]	Voltage Rating - Appliance Inlet [Max]	Switch Features	Termination	Termination	Termination	Current Rating - Filter	Fuse Holder, Drawer	Accomodates a Fuse	Features	Material Flammability Rating	Connector Style	Mounting Type	Filter Type
XP POWER FGSMA10BFR	60.8 mm	29.4 mm	Male Blades Receptacle	115 VAC	230 VAC	Switch On-Off	0.25 in	6.3 mm	Quick Connect	10 A	Fuse Holder Twin Fused		Bleed Resistor Shielded	UL94 V-2	IEC 320-C14	Flange Panel Mount	Filtered (EMI RFI) - Commercial Medical

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Flange
