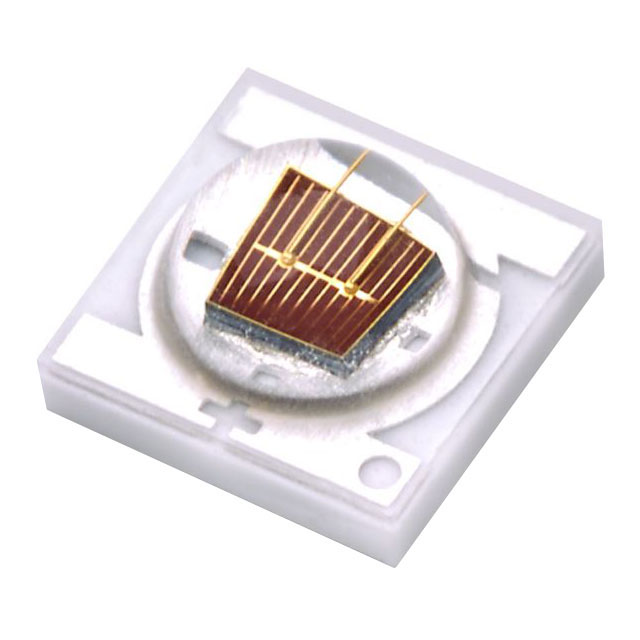

ASM3-SDD0-ANP0H

Obsolete

Broadcom Limited

LED HORTICULTURE DEEP RED 3535

Search across all available documentation for this part.

Obsolete

Broadcom Limited

LED HORTICULTURE DEEP RED 3535

Technical Specifications

Parameters and characteristics for this part

Specification	ASM3-SDD0-ANP0H

Color	Red
Current - Max [Max]	700 mA
Current - Test	350 mA
Luminous Flux @ Current/Temperature [Max]	430 mW
Luminous Flux @ Current/Temperature [Min]	330 mW
Mounting Type	Surface Mount
Package / Case	3535 Metric
Package / Case	1414
Size / Dimension [x]	3.45 mm
Size / Dimension [x]	0.136 in
Size / Dimension [y]	0.136 in
Size / Dimension [y]	3.45 mm
Supplier Device Package	3535
Thermal Resistance of Package [custom]	8 °C/W
Viewing Angle	130 °
Voltage - Forward (Vf) (Typ)	2.1 V
Wavelength	655 nm

Part	Current - Max [Max]	Luminous Flux @ Current/Temperature [Min]	Luminous Flux @ Current/Temperature [Max]	Wavelength	Voltage - Forward (Vf) (Typ)	Package / Case	Package / Case	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Thermal Resistance of Package [custom]	Current - Test	Supplier Device Package	Color	Viewing Angle	Thermal Resistance of Package [diameter]	CRI (Color Rendering Index)	CCT (K)
Broadcom Limited ASM3-SDD0-ANP0H	700 mA	330 mW	430 mW	655 nm	2.1 V	3535 Metric	1414	Surface Mount	3.45 mm	0.136 in	0.136 in	3.45 mm	8 °C/W	350 mA	3535	Red	130 °
Broadcom Limited ASM3-SWD1-NPRHH	700 mA				3 V	3535 Metric	1414	Surface Mount	3.45 mm	0.136 in	0.136 in	3.45 mm		350 mA	3535	Cool White	130 °	15 °C/W	70	7500 K

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting Color Horticulture Red 655nm (650nm ~ 670nm) 1414 (3535 Metric)
