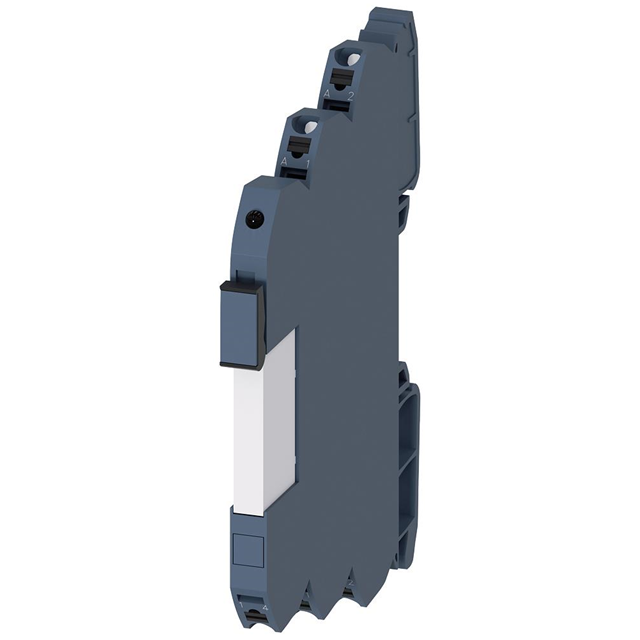

3RQ31182AE00

Active

Siemens

RELAY GEN PURPOSE SPDT 3A 115V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 3RQ Coupling Catalog +1

3RQ31182AE00

Active

Siemens

RELAY GEN PURPOSE SPDT 3A 115V

Deep-Dive with AI

DocumentsDatasheet 3RQ Coupling Catalog +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3RQ31182AE00

Approval Agency	CSA, UL, CCC, EAC
Coil Type	Non Latching
Coil Voltage	115 VAC
Contact Form	SPDT (1 Form C)
Contact Material	Silver Tin Oxide (AgSnO)
Contact Rating (Current)	3 A
Features	Lighted Indicator
Load - Max Switching	750 VA
Mounting Type	DIN Rail
Operate Time	8 ms
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-25 °C
Relay Type	General Purpose
Release Time	17 ms
Switching Voltage	250 VAC
Termination Style	Spring Terminal

3RQ311 Series

Part	Release Time	Mounting Type	Contact Material	Approval Agency	Contact Form	Coil Type	Contact Rating (Current)	Operate Time	Coil Voltage	Switching Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Load - Max Switching	Features	Termination Style	Relay Type
Siemens 3RQ31181AF01	19 ms	DIN Rail	Silver Tin Oxide (AgSnO)	CCC CSA EAC UL	SPDT (1 Form C)	Non Latching	3 A	9 ms	230 VAC	250 VAC	-25 °C	60 °C	750 VA	Lighted Indicator	Screw Terminal	General Purpose
Siemens 3RQ31182AE01	17 ms	DIN Rail	Silver Tin Oxide (AgSnO)	CCC CSA EAC UL	SPDT (1 Form C)	Non Latching	3 A	8 ms	115 VAC	250 VAC	-25 °C	60 °C	750 VA	Lighted Indicator	Spring Terminal	General Purpose
Siemens 3RQ31181AM00	13 ms	DIN Rail	Silver Tin Oxide (AgSnO)	CCC CSA EAC UL	SPDT (1 Form C)	Non Latching	3 A	12 ms	24 VDC	250 VAC	-25 °C	60 °C	750 VA	Lighted Indicator	Screw Terminal	General Purpose
Siemens 3RQ31182AF01	19 ms	DIN Rail	Silver Tin Oxide (AgSnO)	CCC CSA EAC UL	SPDT (1 Form C)	Non Latching	3 A	9 ms	230 VAC	250 VAC	-25 °C	60 °C	750 VA	Lighted Indicator	Spring Terminal	General Purpose
Siemens 3RQ31181AE00	17 ms	DIN Rail	Silver Tin Oxide (AgSnO)	CCC CSA EAC UL	SPDT (1 Form C)	Non Latching	3 A	8 ms	115 VAC	250 VAC	-25 °C	60 °C	750 VA	Lighted Indicator	Screw Terminal	General Purpose
Siemens 3RQ31182AF00	19 ms	DIN Rail	Silver Tin Oxide (AgSnO)	CCC CSA EAC UL	SPDT (1 Form C)	Non Latching	3 A	9 ms	230 VAC	250 VAC	-25 °C	60 °C	750 VA	Lighted Indicator	Spring Terminal	General Purpose
Siemens 3RQ31182AE00	17 ms	DIN Rail	Silver Tin Oxide (AgSnO)	CCC CSA EAC UL	SPDT (1 Form C)	Non Latching	3 A	8 ms	115 VAC	250 VAC	-25 °C	60 °C	750 VA	Lighted Indicator	Spring Terminal	General Purpose
Siemens 3RQ31181AF00	19 ms	DIN Rail	Silver Tin Oxide (AgSnO)	CCC CSA EAC UL	SPDT (1 Form C)	Non Latching	3 A	9 ms	230 VAC	250 VAC	-25 °C	60 °C	750 VA	Lighted Indicator	Screw Terminal	General Purpose
Siemens 3RQ31181AB01	14 ms	DIN Rail	Silver Tin Oxide (AgSnO)	CCC CSA EAC UL	SPDT (1 Form C)	Non Latching	3 A	12 ms	24 VAC	250 VAC	-25 °C	60 °C	750 VA	Lighted Indicator	Screw Terminal	General Purpose
Siemens 3RQ31181AM01	13 ms	DIN Rail	Silver Tin Oxide (AgSnO)	CCC CSA EAC UL	SPDT (1 Form C)	Non Latching	3 A	12 ms	24 VDC	250 VAC	-25 °C	60 °C	750 VA	Lighted Indicator	Screw Terminal	General Purpose

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	5	$ 100.29
LCSC	Piece	1	$ 278.16
		200	$ 110.99
		500	$ 107.28
		1000	$ 105.44

Description

General part information

3RQ311 Series

General Purpose Relay SPDT (1 Form C) 115VAC/DC Coil DIN Rail
