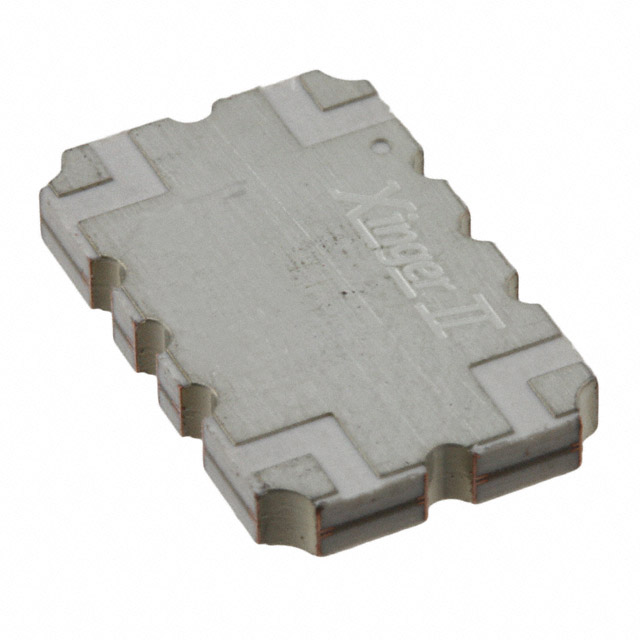

XC1900A-03S
ActiveTTM Technologies, Inc.
RF DIR COUPLER 1.4GHZ-2GHZ SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XC1900A-03S
ActiveTTM Technologies, Inc.
RF DIR COUPLER 1.4GHZ-2GHZ SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XC1900A-03S |
|---|---|
| Applications | AMPS |
| Coupler Type | Standard |
| Coupling Factor | 3 dB |
| Frequency [Max] | 2 GHz |
| Frequency [Min] | 1.4 GHz |
| Insertion Loss | 0.15 dB |
| Isolation | 25 dB |
| Package / Case | 4-SMD, No Lead |
| Power - Max [Max] | 150 W |
| Return Loss | 24.9 dB |
| Supplier Device Package | SMD |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 4.82 | |
| 10 | $ 4.17 | |||
| 25 | $ 3.94 | |||
| 100 | $ 3.63 | |||
| 250 | $ 3.45 | |||
| 500 | $ 3.31 | |||
| 1000 | $ 3.19 | |||
| Digi-Reel® | 1 | $ 4.82 | ||
| 10 | $ 4.17 | |||
| 25 | $ 3.94 | |||
| 100 | $ 3.63 | |||
| 250 | $ 3.45 | |||
| 500 | $ 3.31 | |||
| 1000 | $ 3.19 | |||
| Tape & Reel (TR) | 2000 | $ 2.49 | ||
Description
General part information
XC1900 Series
RF Directional Coupler AMPS 1.4GHz ~ 2GHz 3dB 150W 4-SMD, No Lead
