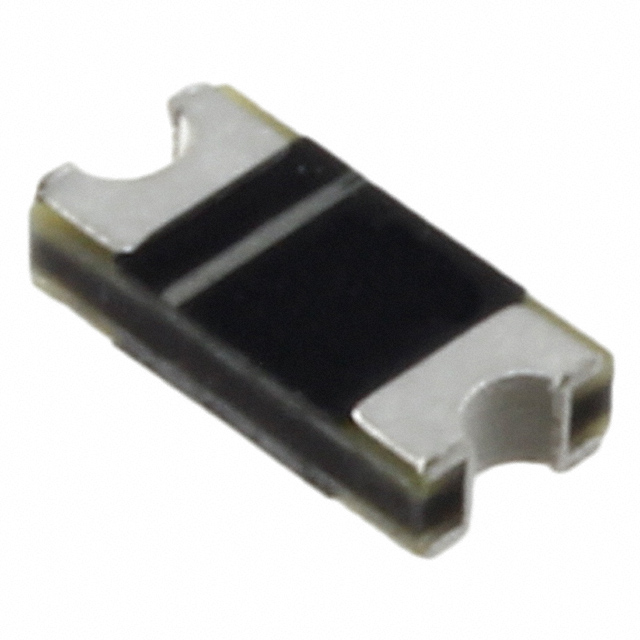

SD2010S040S3R0

Active

Kyocera AVX

DIODE SCHOTTKY 40V 3A 2010

Search across all available documentation for this part.

Active

Kyocera AVX

DIODE SCHOTTKY 40V 3A 2010

Technical Specifications

Parameters and characteristics for this part

Specification	SD2010S040S3R0

Current - Average Rectified (Io)	3 A
Current - Reverse Leakage @ Vr	200 µA
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	125 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	2-SMD, No Lead
Speed	200 mA, 500 ns
Supplier Device Package	2010/DO-214AC
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	40 V
Voltage - Forward (Vf) (Max) @ If	500 mV

Part	Package / Case	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Average Rectified (Io)	Supplier Device Package	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Mounting Type	Voltage - Forward (Vf) (Max) @ If	Current - Reverse Leakage @ Vr	Speed	Technology
Kyocera AVX SD2010S020S1R0	2-SMD No Lead	20 V	1 A	2010/DO-214AC	-55 °C	125 °C	Surface Mount	500 mV	200 µA	200 mA 500 ns	Schottky
Kyocera AVX SD2010S040S1R0	2-SMD No Lead	40 V	1 A	2010/DO-214AC	-55 °C	125 °C	Surface Mount	500 mV	200 µA	200 mA 500 ns	Schottky
Kyocera AVX SD2010S040S3R0	2-SMD No Lead	40 V	3 A	2010/DO-214AC	-55 °C	125 °C	Surface Mount	500 mV	200 µA	200 mA 500 ns	Schottky
Kyocera AVX SD2010S100S1R0	2-SMD No Lead	100 V	1 A	2010/DO-214AC	-55 °C	125 °C	Surface Mount	850 mV	200 µA	200 mA 500 ns	Schottky

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 40 V 3A Surface Mount 2010/DO-214AC
