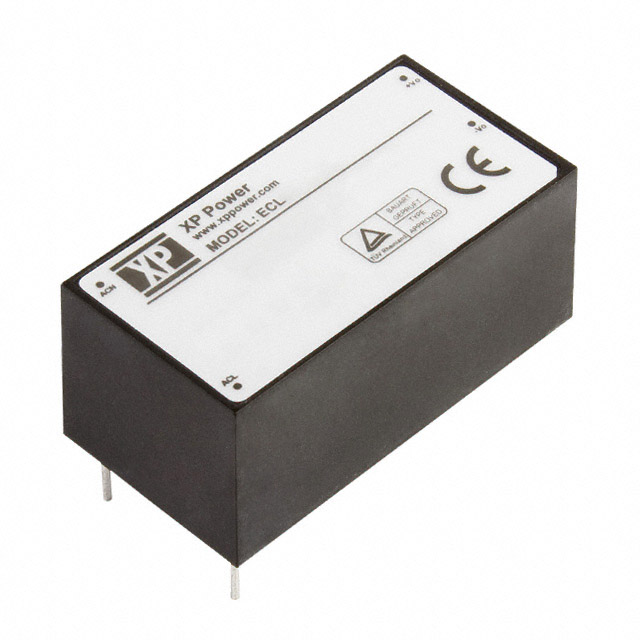

ECL05US15-E

Active

XP POWER

AC/DC CONVERTER 15V 5W

Search across all available documentation for this part.

Active

XP POWER

AC/DC CONVERTER 15V 5W

Technical Specifications

Parameters and characteristics for this part

Part	Efficiency	Line Regulation	Voltage - Output 1	Current - Output (Max)	Operating Temperature [Min]	Operating Temperature [Max]	Weight	Weight	Mounting Type	Load Regulation	Number of Outputs	Features	Type	Package / Case	Applications	Standard Number	Power (Watts)	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Approval Agency
XP POWER ECL05US15-E	80 %	0.5 %	15 V	330 mA	-20 °C	70 °C	0.132 lb	59.87 g	Through Hole	1 %	1	Universal Input	Enclosed	4-DIP Module	ITE (Commercial)	62368-1	5 W	2.06 in	0.91 in	52.3 mm	27.2 mm	1.07 in	23 mm	CSA cUL EN IEC UL

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	6	$ 29.43

General part information

Enclosed AC DC Converters 1 Output 15V 330mA 85 ~ 264 VAC Input
