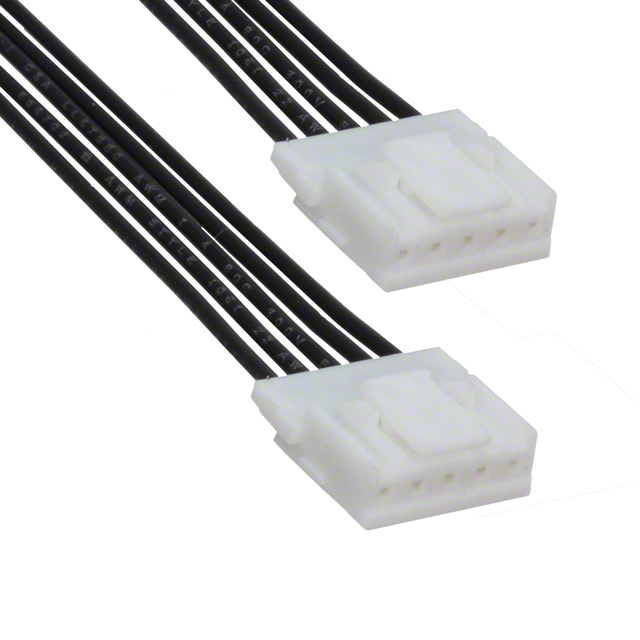

A05XAF05XAF22K51B

Active

JST Sales America Inc.

JUMPER 05XAF-2S - 05XAF-2S 2"

Search across all available documentation for this part.

Active

JST Sales America Inc.

JUMPER 05XAF-2S - 05XAF-2S 2"

Technical Specifications

Parameters and characteristics for this part

Part	Length	Length	Length	Cable Termination	Number of Rows	Connector Type	Pitch - Connector	Pitch - Connector	Contact Finish	Length [x]	Length [x]	Length [x]	Length
JST Sales America Inc. A05XAF05XAF22K152A	152.4 mm	6 "	0.5 '	IDC	1	Socket to Socket Reversed	2.5 mm	0.098 in	Tin
JST Sales America Inc. A05XAF05XAF22K102A				IDC	1	Socket to Socket Reversed	2.5 mm	0.098 in	Tin	4 "	0.333 ft	101.6 mm
JST Sales America Inc. A05XAF05XAF22K305A	304.8 mm			IDC	1	Socket to Socket Reversed	2.5 mm	0.098 in	Tin				1 ft
JST Sales America Inc. A05XAF05XAF22K203A	203.2 mm	8 in		IDC	1	Socket to Socket Reversed	2.5 mm	0.098 in	Tin				0.667 ft
JST Sales America Inc. A05XAF05XAF22K152B	152.4 mm	6 "	0.5 '	IDC	1	Socket to Socket	2.5 mm	0.098 in	Tin
JST Sales America Inc. A05XAF05XAF22K254A	254 mm	10 in		IDC	1	Socket to Socket Reversed	2.5 mm	0.098 in	Tin				0.833 ft
JST Sales America Inc. A05XAF05XAF22K51B	50.8 mm	2 "		IDC	1	Socket to Socket	2.5 mm	0.098 in	Tin				0.167 '
JST Sales America Inc. A05XAF05XAF22K305B	304.8 mm			IDC	1	Socket to Socket	2.5 mm	0.098 in	Tin				1 ft
JST Sales America Inc. A05XAF05XAF22K254B	254 mm	10 in		IDC	1	Socket to Socket	2.5 mm	0.098 in	Tin				0.833 ft
JST Sales America Inc. A05XAF05XAF22K102B				IDC	1	Socket to Socket	2.5 mm	0.098 in	Tin	4 "	0.333 ft	101.6 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Cable Assembly Rectangular Socket to Socket 0.167' (50.80mm, 2.00")
