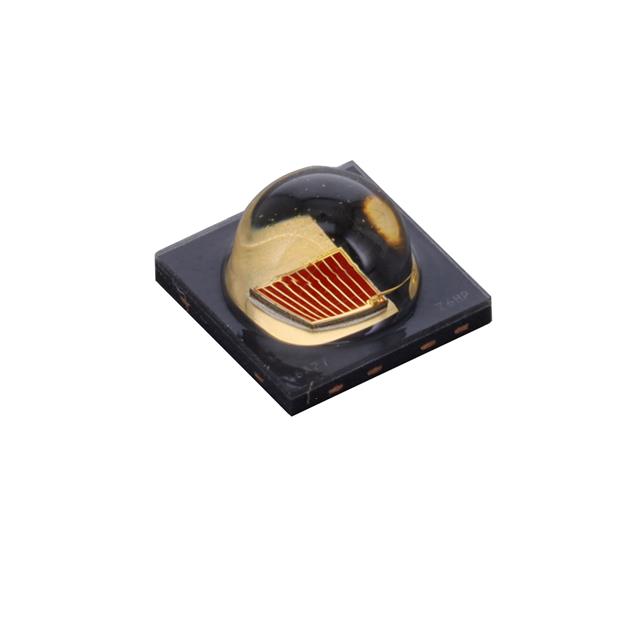

LR H9GP-HZKX-1-1-350-R18-Z
Activeams-OSRAM USA INC.
LED OSLON RED 625NM 3SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LR H9GP-HZKX-1-1-350-R18-Z
Activeams-OSRAM USA INC.
LED OSLON RED 625NM 3SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LR H9GP-HZKX-1-1-350-R18-Z |
|---|---|
| Color | Red |
| Current - Max [Max] | 1 A |
| Current - Test | 350 mA |
| Lumens/Watt @ Current - Test | 81 lm/W |
| Luminous Flux @ Current/Temperature | 61 lm |
| Luminous Flux @ Current/Temperature [Max] | 82 lm |
| Luminous Flux @ Current/Temperature [Min] | 39 lm |
| Mounting Type | Surface Mount |
| Package / Case | 3838 Metric |
| Package / Case | 1515 |
| Size / Dimension [x] | 0.152 " |
| Size / Dimension [x] | 3.85 mm |
| Size / Dimension [y] | 0.152 " |
| Size / Dimension [y] | 3.85 mm |
| Supplier Device Package | 3-SMD |
| Viewing Angle [custom] | 90 ° |
| Voltage - Forward (Vf) (Typ) | 2.15 V |
| Wavelength | 625 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.28 | |
| 10 | $ 1.48 | |||
| 100 | $ 1.07 | |||
| Digi-Reel® | 1 | $ 2.28 | ||
| 10 | $ 1.48 | |||
| 100 | $ 1.07 | |||
| Tape & Reel (TR) | 600 | $ 0.90 | ||
| 1200 | $ 0.85 | |||
| 1800 | $ 0.83 | |||
| 3000 | $ 0.80 | |||
| 4200 | $ 0.79 | |||
| 6000 | $ 0.77 | |||
Description
General part information
LRH9GP Series
LED Lighting Color OSLON® Black Red 625nm (Typ) 1515 (3838 Metric)
