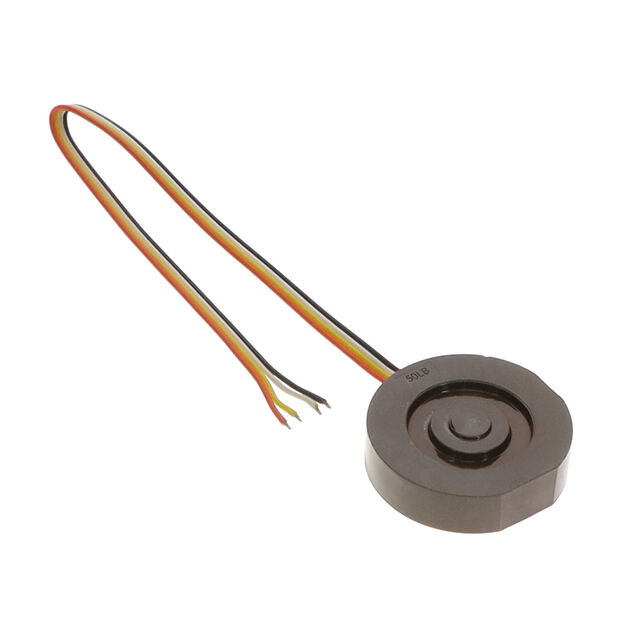

FX292X-100A-0050-L
ActiveTE Connectivity Measurement Specialties
50LBF COMPRESSION LOAD CELL, 100
Deep-Dive with AI
Search across all available documentation for this part.
FX292X-100A-0050-L
ActiveTE Connectivity Measurement Specialties
50LBF COMPRESSION LOAD CELL, 100
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FX292X-100A-0050-L |
|---|---|
| Accuracy | 1 % |
| Actuator Type | Pushbutton |
| Compensated Temperature [Max] | 50 °C |
| Compensated Temperature [Min] | 0 °C |
| Includes | Sensor |
| Operating Force | 55 lbs |
| Operating Force | 25 kgf |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | 0 °C |
| Output | Analog Voltage |
| Sensor Type | Load Cell |
| Voltage - Supply [Max] | 6 V |
| Voltage - Supply [Min] | 1 V |
FX292X Series
| Part | Compensated Temperature [Min] | Compensated Temperature [Max] | Sensor Type | Operating Force | Operating Force | Actuator Type | Operating Temperature [Min] | Operating Temperature [Max] | Accuracy | Includes | Voltage - Supply [Max] | Voltage - Supply [Min] | Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Measurement Specialties | 0 °C | 50 °C | Load Cell | 55 lbs | 25 kgf | Pushbutton | 0 °C | 85 °C | 1 % | Sensor | 6 V | 1 V | Analog Voltage |
TE Connectivity Measurement Specialties | 0 °C | 50 °C | Load Cell | 110 lbs | 50 kgf | Pushbutton | 0 °C | 85 °C | 1 % | Sensor | 6 V | 1 V | Analog Voltage |
TE Connectivity Measurement Specialties | 0 °C | 50 °C | Load Cell | Pushbutton | 0 °C | 85 °C | 1 % | Sensor | 6 V | 1 V | Analog Voltage | ||
TE Connectivity Measurement Specialties | 0 °C | 50 °C | Load Cell | 55 lbs | 25 kgf | Pushbutton | 0 °C | 85 °C | 1 % | Sensor | 6 V | 1 V | Analog Voltage |
TE Connectivity Measurement Specialties | 0 °C | 50 °C | Load Cell | 11 lbs | 5 kgf | Pushbutton | 0 °C | 85 °C | 1 % | Sensor | 6 V | 1 V | Analog Voltage |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 37.20 | |
| 5 | $ 31.37 | |||
| 10 | $ 29.15 | |||
| 25 | $ 26.46 | |||
| 50 | $ 24.59 | |||
| 100 | $ 22.86 | |||
Description
General part information
FX292X Series
50LBF COMPRESSION LOAD CELL, 100
Documents
Technical documentation and resources
No documents available
