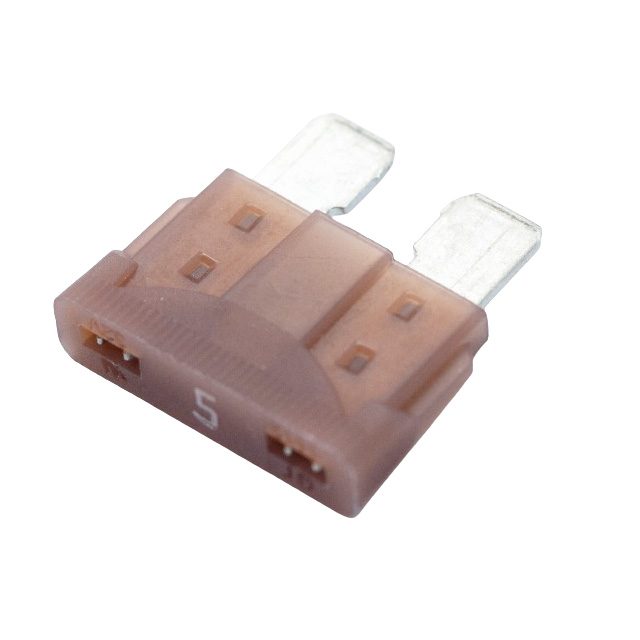

ANR-UL-5A

Active

OptiFuse

FUSE AUTO 5A 32VDC BLADE ATO/ATC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ANR-UL-5A

Active

OptiFuse

FUSE AUTO 5A 32VDC BLADE ATO/ATC

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ANR-UL-5A

Approval Agency	ISO, UL 248, SAE, cURus
Breaking Capacity @ Rated Voltage	1 kA
Color	Tan
Current Rating (Amps)	5 A
Fuse Type	Automotive
Mounting Type	Requires Holder
Package / Case	ATO, Blade, ATC
Response Time	Fast Blow
Size / Dimension [x]	0.768 "
Size / Dimension [x]	19.5 mm
Size / Dimension [y]	0.217 in
Size / Dimension [y]	5.5 mm
Size / Dimension [z]	0.547 in
Size / Dimension [z]	13.9 mm
Voltage Rating - DC	32 V

ANR-UL Series

Part	Fuse Type	Breaking Capacity @ Rated Voltage	Package / Case	Mounting Type	Response Time	Current Rating (Amps)	Color	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Voltage Rating - DC	Approval Agency
OptiFuse ANR-UL-20A	Automotive	1 kA	ATC ATO Blade	Requires Holder	Fast Blow	20 A	Yellow	0.547 in	0.217 in	0.768 "	19.5 mm	5.5 mm	13.9 mm	32 V	cURus ISO SAE UL 248
OptiFuse ANR-UL-40A	Automotive	1 kA	ATC ATO Blade	Requires Holder	Fast Blow	40 A		0.547 in	0.217 in	0.768 "	19.5 mm	5.5 mm	13.9 mm	32 V	cURus ISO SAE UL 248
OptiFuse ANR-UL-7.5A	Automotive	1 kA	ATC ATO Blade	Requires Holder	Fast Blow	7.5 A	Brown	0.547 in	0.217 in	0.768 "	19.5 mm	5.5 mm	13.9 mm	32 V	cURus ISO SAE UL 248
OptiFuse ANR-UL-30A	Automotive	1 kA	ATC ATO Blade	Requires Holder	Fast Blow	30 A	Green	0.547 in	0.217 in	0.768 "	19.5 mm	5.5 mm	13.9 mm	32 V	cURus ISO SAE UL 248
OptiFuse ANR-UL-4A	Automotive	1 kA	ATC ATO Blade	Requires Holder	Fast Blow	4 A	Pink	0.547 in	0.217 in	0.768 "	19.5 mm	5.5 mm	13.9 mm	32 V	cURus ISO SAE UL 248
OptiFuse ANR-UL-3A	Automotive	1 kA	ATC ATO Blade	Requires Holder	Fast Blow	3 A	Violet	0.547 in	0.217 in	0.768 "	19.5 mm	5.5 mm	13.9 mm	32 V	cURus ISO SAE UL 248
OptiFuse ANR-UL-10A	Automotive	1 kA	ATC ATO Blade	Requires Holder	Fast Blow	10 A	Red	0.547 in	0.217 in	0.768 "	19.5 mm	5.5 mm	13.9 mm	32 V	cURus ISO SAE UL 248
OptiFuse ANR-UL-35A	Automotive	1 kA	ATC ATO Blade	Requires Holder	Fast Blow	35 A	Dark Green	0.547 in	0.217 in	0.768 "	19.5 mm	5.5 mm	13.9 mm	32 V	cURus ISO SAE UL 248
OptiFuse ANR-UL-5A	Automotive	1 kA	ATC ATO Blade	Requires Holder	Fast Blow	5 A	Tan	0.547 in	0.217 in	0.768 "	19.5 mm	5.5 mm	13.9 mm	32 V	cURus ISO SAE UL 248

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.32
		10	$ 0.31
		25	$ 0.30
		50	$ 0.25
		100	$ 0.21
		250	$ 0.19
		500	$ 0.16
		1000	$ 0.14

Description

General part information

ANR-UL Series

5 A AC 32 V DC Fuse Automotive Requires Holder Blade, ATO/ATC
