Q2-F-1 1/4-01-QB6IN-8

Active

Qualtek

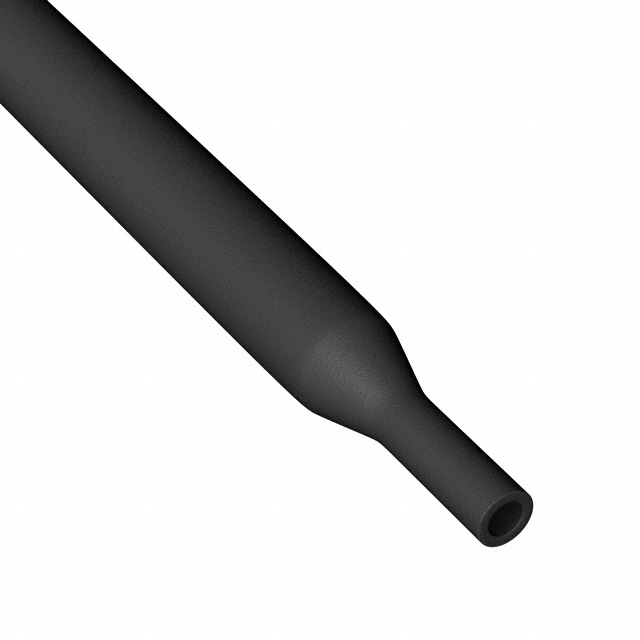

HEATSHRINK 1-1/4" X 0.5' BLK 8PC

Search across all available documentation for this part.

Active

Qualtek

HEATSHRINK 1-1/4" X 0.5' BLK 8PC

Technical Specifications

Parameters and characteristics for this part

Specification	Q2-F-1 1/4-01-QB6IN-8

Color	Black
Features	Flame Retardant
Inner Diameter - Recovered [diameter]	15.9 mm
Inner Diameter - Recovered [diameter]	0.626 in
Inner Diameter - Supplied [diameter]	1.25 in
Inner Diameter - Supplied [diameter]	31.75 mm
Length	152.4 mm
Length	6 "
Length	0.5 '
Material	Polyolefin (PO)
Operating Temperature [Max]	135 °C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness	0.99 mm
Recovered Wall Thickness	0.039 in
Shelf Life	144 Months
Shrink Temperature	70 °C
Shrinkage Ratio	2 to 1
Storage/Refrigeration Temperature [Max]	40 °C
Storage/Refrigeration Temperature [Min]	-10 °C, -50 °F
Type	Tubing, Flexible

Part	Recovered Wall Thickness	Recovered Wall Thickness	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Material	Features	Shrinkage Ratio	Shrink Temperature	Shelf Life	Length	Length	Type	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Color	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Length	Length	Length [x]	Length [x]
Qualtek Q2-F-1 1/4-01-MS50FT	0.99 mm	0.039 in	1.25 in	31.75 mm	Polyolefin (PO)	Flame Retardant	2 to 1	70 °C	144 Months	15.2 m	50 ft	Tubing Flexible	15.9 mm	0.626 in	Black	-50 °F -10 °C	40 °C	135 °C	-55 °C
Qualtek Q2-F-1 1/4-01-QB6IN-8	0.99 mm	0.039 in	1.25 in	31.75 mm	Polyolefin (PO)	Flame Retardant	2 to 1	70 °C	144 Months	152.4 mm		Tubing Flexible	15.9 mm	0.626 in	Black	-50 °F -10 °C	40 °C	135 °C	-55 °C	6 "	0.5 '
Qualtek Q2-F-1 1/4-01-QB48IN-5	0.99 mm	0.039 in	1.25 in	31.75 mm	Polyolefin (PO)	Flame Retardant	2 to 1	70 °C	144 Months			Tubing Flexible	15.9 mm	0.626 in	Black	-50 °F -10 °C	40 °C	135 °C	-55 °C			1.22 m	4 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Shrink Tubing, Flexible 1.250" (31.75mm) 2 to 1 Black 0.500' (152.40mm, 6.00")
