R6397-02

Active

Harwin Inc.

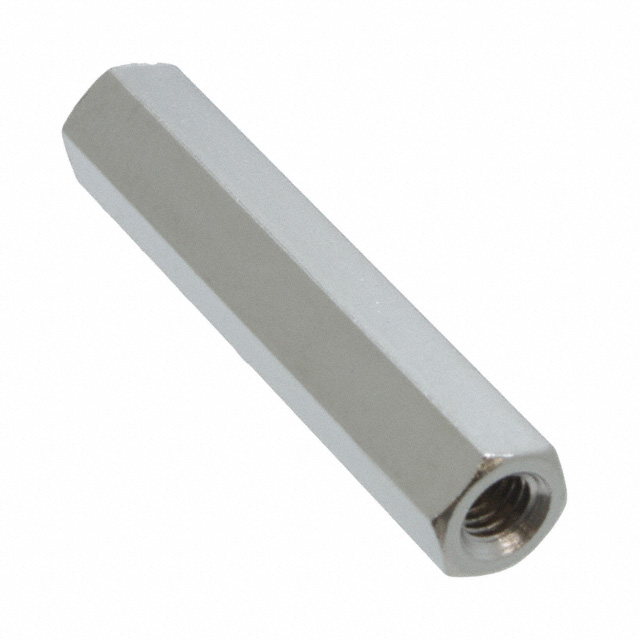

STANDOFF, NICKEL PLATED, BRASS, M3, HEX FEMALE, 25.4 MM, R63 SERIES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDrawing EN Datasheet

R6397-02

Active

Harwin Inc.

STANDOFF, NICKEL PLATED, BRASS, M3, HEX FEMALE, 25.4 MM, R63 SERIES

Deep-Dive with AI

DocumentsDrawing EN Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R6397-02

Between Board Height	1 in
Between Board Height	25.4 mm
Diameter - Outside [diameter]	0.217 in
Diameter - Outside [diameter]	5.5 mm
Gender	Female
Length - Overall	25.4 mm
Length - Overall	1 "
Material	Brass
Plating	Nickel
Screw, Thread Size	M3x0.5
Threaded/Unthreaded	Threaded
Type	Hex Standoff

R6397 Series

Part	Screw, Thread Size	Gender	Type	Between Board Height	Between Board Height	Length - Overall	Length - Overall	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Material	Plating	Threaded/Unthreaded
Harwin Inc. R6397-02	M3x0.5	Female	Hex Standoff	1 in	25.4 mm	25.4 mm	1 "	0.217 in	5.5 mm	Brass	Nickel	Threaded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.88
		5	$ 0.75
		10	$ 0.63
		25	$ 0.59
		50	$ 0.57
		100	$ 0.50
		300	$ 0.48
		500	$ 0.45
		1000	$ 0.43
Newark	Each	500	$ 0.48
		1000	$ 0.43

Description

General part information

R6397 Series

M3 sized, zinc plated steel hexagonal connecting nuts. The nuts are commonly used as spacers but can also be used to connect threaded rod e.g. studding.

Documents

Technical documentation and resources

Drawing EN

Datasheet
