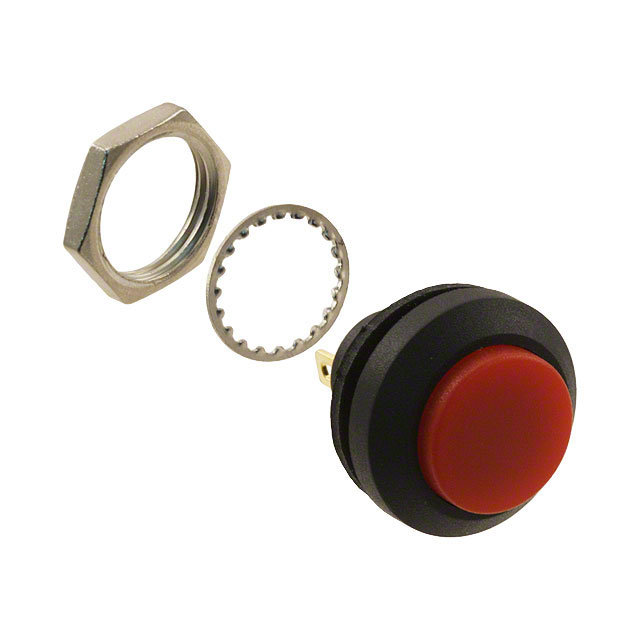

GPB556A05BR
ActiveCW Industries
SWITCH PB SPST-NO 0.125A 125V
Deep-Dive with AI
Search across all available documentation for this part.
GPB556A05BR
ActiveCW Industries
SWITCH PB SPST-NO 0.125A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | GPB556A05BR |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Round, Button |
| Circuit | SPST-NO |
| Color - Actuator/Cap | Red |
| Current Rating (Amps) | 125 mA, 100 mA |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [diameter] | 12 mm |
| Switch Function | Off-Mom |
| Termination Style | Solder Lug |
| Type | Standard |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 50 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.55 | |
| 10 | $ 7.68 | |||
| 25 | $ 7.33 | |||
| 50 | $ 7.01 | |||
| 100 | $ 6.74 | |||
| 250 | $ 6.38 | |||
| 500 | $ 5.91 | |||
| 1000 | $ 5.63 | |||
Description
General part information
GPB556A Series
Pushbutton Switch SPST-NO Standard Panel Mount, Front
