039-121-011
ActiveAdvanced Photonix

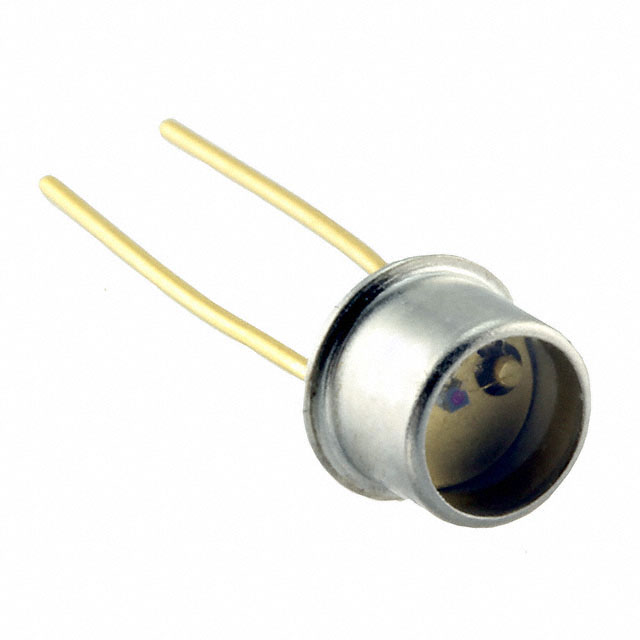

SENSOR PHOTODIODE 10V 1MM TO46
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
039-121-011
ActiveAdvanced Photonix
SENSOR PHOTODIODE 10V 1MM TO46
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 039-121-011 |
|---|---|
| Current - Dark (Typ) | 30 nA |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | 0 °C |
| Response Time | 5 ns |
| Responsivity @ nm | 0.35 A/W |
| Voltage - DC Reverse (Vr) (Max) [Max] | 20 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 192.33 | |
Description
General part information
039-121 Series
Photodiode 5ns
