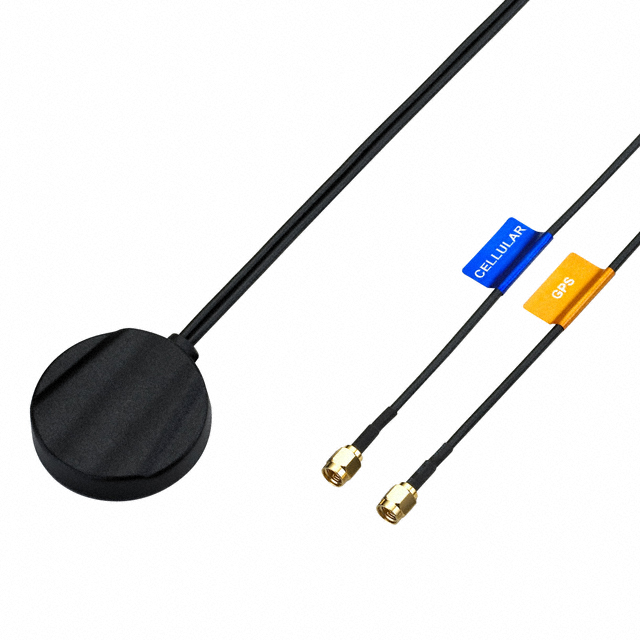

MA203W.AB.002

Active

TAOGLAS

RF ANT 850MHZ/900MHZ MOD SMA ADH

Search across all available documentation for this part.

Active

TAOGLAS

RF ANT 850MHZ/900MHZ MOD SMA ADH

Technical Specifications

Parameters and characteristics for this part

Specification	MA203W.AB.002

Antenna Type	Module
Applications	GPS, UMTS, DCS, PCS, EDGE, GPRS, HSPA, CDMA, GSM
Features	Cable - 3m, LNA
Frequency (Center/Band)	1.8 GHz, 900 MHz, 1.575 GHz, 1.9 GHz, 850 MHz
Frequency Range [Max]	960 MHz, 2.17 GHz
Frequency Range [Min]	1.71 GHz, 824 MHz
Gain	-3 dBic
Height (Max) [Max]	0.465 in
Height (Max) [Max]	11.8 mm
Ingress Protection	IP67
Mounting Type	Adhesive
Number of Bands [custom]	5
Return Loss	-10 dB
RF Family/Standard	Cellular, Navigation
Termination	SMA Male (2)
VSWR	1.92

Part	Frequency Range [Min]	Frequency Range [Max]	Gain	Frequency (Center/Band)	Height (Max) [Max]	Height (Max) [Max]	Antenna Type	VSWR	Mounting Type	RF Family/Standard	Number of Bands [custom]	Ingress Protection	Features	Applications	Return Loss	Termination
TAOGLAS MA203W.AB.002	1.71 GHz 824 MHz	2.17 GHz 960 MHz	-3 dBic	1.575 GHz 1.8 GHz 1.9 GHz 850 MHz 900 MHz	0.465 in	11.8 mm	Module	1.92	Adhesive	Cellular Navigation	5	IP67	Cable - 3m LNA	CDMA DCS EDGE GPRS GPS GSM HSPA PCS UMTS	-10 dB	SMA Male (2)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF ANTENNA CDMA, DCS, EDGE, GPRS, GPS, GSM, HSPA, PCS, UMTS Module SMA Male (2) Adhesive
