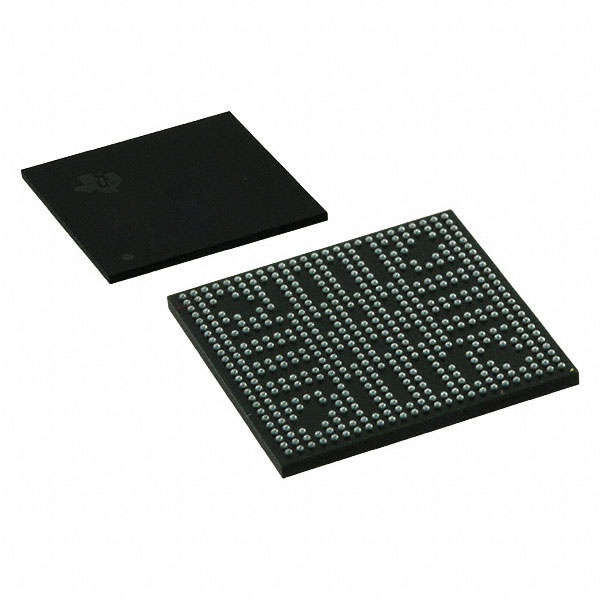

XAM437XAZDN100

Obsolete

Texas Instruments

IC MPU SITARA 1.0GHZ 491NFBGA

Search across all available documentation for this part.

Obsolete

Texas Instruments

IC MPU SITARA 1.0GHZ 491NFBGA

Technical Specifications

Parameters and characteristics for this part

Specification	XAM437XAZDN100

Additional Interfaces	CAN, SD/SDIO, HDQ/1-Wire, QSPI, UART, McASP, SPI, I2C, MMC/SD/SDIO
Co-Processors/DSP	NEON™ SIMD, Multimedia
Core Processor	ARM® Cortex®-A9
Display & Interface Controllers	WXGA, TSC
Ethernet	10 Mbps, 1000 Mbps, 100 Mbps
Ethernet	2
Graphics Acceleration	True
Number of Cores/Bus Width	32 Bit, 1 Core
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	0 °C
RAM Controllers	LPDDR2, DDR3L, DDR3
Security Features	Crypto Accelerator
Speed	1 GHz
Supplier Device Package	491-NFBGA (17x17)
USB	USB 2.0 + PHY (2)
Voltage - I/O	3.3 V, 1.8 V

Part	Supplier Device Package	Speed	Voltage - I/O	Co-Processors/DSP	RAM Controllers	Security Features	USB	Display & Interface Controllers	Core Processor	Ethernet	Ethernet	Operating Temperature [Min]	Operating Temperature [Max]	Graphics Acceleration	Additional Interfaces	Number of Cores/Bus Width
Texas Instruments XAM437XAZDN100	491-NFBGA (17x17)	1 GHz	1.8 V 3.3 V	Multimedia NEON™ SIMD	DDR3 DDR3L LPDDR2	Crypto Accelerator	USB 2.0 + PHY (2)	TSC WXGA	ARM® Cortex®-A9	10 Mbps 100 Mbps 1000 Mbps	2	0 °C	90 °C		CAN HDQ/1-Wire I2C McASP MMC/SD/SDIO QSPI SD/SDIO SPI UART	1 Core 32 Bit

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

ARM® Cortex®-A9 Microprocessor IC Sitara™ 1 Core, 32-Bit 1.0GHz 491-NFBGA (17x17)

Technical documentation and resources

No documents available
