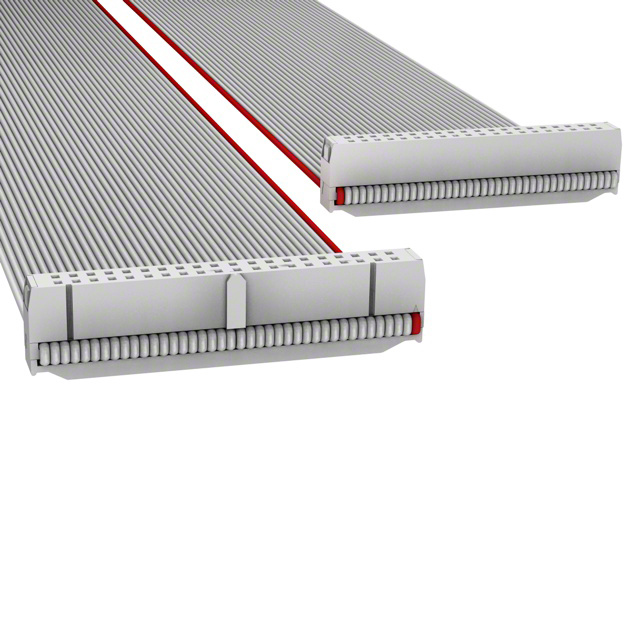

H3DDH-4036G

Active

Assmann WSW Components

IDC CBL - HHKR40H/AE40G/HHKR40H

Search across all available documentation for this part.

Active

Assmann WSW Components

IDC CBL - HHKR40H/AE40G/HHKR40H

Technical Specifications

Parameters and characteristics for this part

Specification	H3DDH-4036G

Cable Termination	IDC
Connector Type	Socket to Socket
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Features	Polarizing Key, Strain Relief
Length [x]	3 ft
Length [x]	914.4 mm
Number of Positions	40
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

Part	Contact Finish Thickness	Contact Finish Thickness	Features	Pitch - Cable	Pitch - Cable	Length [x]	Length [x]	Contact Finish	Shielding	Number of Rows	Pitch - Connector	Pitch - Connector	Number of Positions	Connector Type	Cable Termination	Color
Assmann WSW Components H3DDH-4036G	15 µin	0.38 µm	Polarizing Key Strain Relief	0.05 "	1.27 mm	3 ft	914.4 mm	Gold	Unshielded	2	0.1 in	2.54 mm	40	Socket to Socket	IDC
Assmann WSW Components H3DDH-4018M	15 µin	0.38 µm	Polarizing Key Strain Relief	0.05 "	1.27 mm	1.5 ft	457.2 mm	Gold	Unshielded	2	0.1 in	2.54 mm	40	Socket to Socket	IDC	Multiple Ribbon

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

40 Position Cable Assembly Rectangular Socket to Socket 3.00' (914.40mm)
