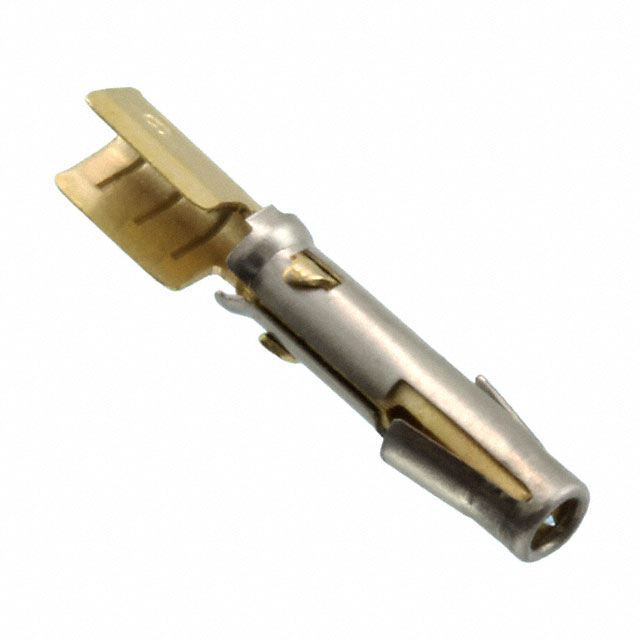

SC16M1D70

Active

Souriau-Sunbank by Eaton

FEMALE #16 STAMPED AND FORMED CRIMP CONTACT ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Souriau-Sunbank by Eaton

FEMALE #16 STAMPED AND FORMED CRIMP CONTACT ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish	Pin or Socket	Wire Gauge [Min]	Wire Gauge [Max]	Contact Finish Thickness	Contact Termination	Contact Material	Type	Contact Finish Thickness	Contact Finish Thickness
Souriau-Sunbank by Eaton SC16M1D70	Gold	Socket	16 AWG	18 AWG	Flash	Crimp	Copper Alloy	Stamped
Souriau-Sunbank by Eaton SC16M1S31	Gold	Socket	16 AWG	18 AWG	Flash	Crimp	Copper Alloy	Stamped
Souriau-Sunbank by Eaton SC16M11D70	Gold	Socket	16 AWG	18 AWG		Crimp	Copper Alloy	Stamped	0.13 µm	5.11 µin
Souriau-Sunbank by Eaton SC16M11TK6	Tin	Socket	16 AWG	18 AWG		Crimp	Copper Alloy	Stamped	0.5 µm	19.7 µin
Souriau-Sunbank by Eaton SC16M11S31	Gold	Socket	16 AWG	18 AWG	Flash	Crimp	Copper Alloy	Stamped
Souriau-Sunbank by Eaton SC16M1S18	Gold	Socket	16 AWG	18 AWG		Crimp	Copper Alloy	Stamped	0.75 µm	29.5 µin
Souriau-Sunbank by Eaton SC16M1S6REV	Gold	Socket	14 AWG	30 AWG		Crimp		Stamped
Souriau-Sunbank by Eaton SC16M11S18	Gold	Socket	16 AWG	18 AWG		Crimp	Copper Alloy	Stamped	0.75 µm	29.5 µin
Souriau-Sunbank by Eaton SC16M11S6	Gold	Socket	16 AWG	18 AWG		Crimp	Copper Alloy	Stamped	0.75 µm	29.5 µin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Socket Contact Gold Crimp 16-18 AWG Stamped

Technical documentation and resources

No documents available
