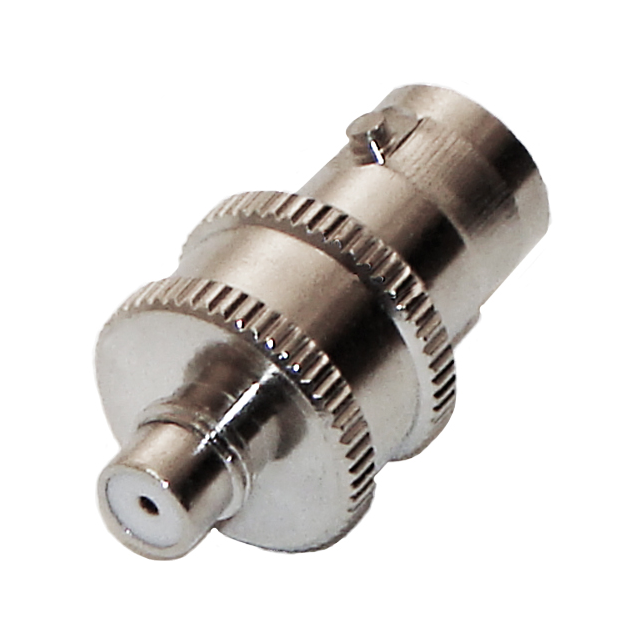

RFB-1142-6

Active

RF Industries

BNC FEMALE-SMA FEMALE QD

Search across all available documentation for this part.

Active

RF Industries

BNC FEMALE-SMA FEMALE QD

Technical Specifications

Parameters and characteristics for this part

Specification	RFB-1142-6

Adapter Series	BNC to SMA
Adapter Type	Jack to Jack
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Between Series
Convert From (Adapter End)	BNC Jack, Female Socket
Convert To (Adapter End)	SMA Jack, Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock, Threaded
Frequency - Max [Max]	4 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Style	Straight

Part	Mounting Type	Fastening Type	Center Contact Plating	Style	Convert To (Adapter End)	Body Finish	Dielectric Material	Conversion Type	Frequency - Max [Max]	Center Gender	Body Material	Adapter Series	Adapter Type	Convert From (Adapter End)	Center Contact Material	Impedance
RF Industries RFB-1142-4	Free Hanging (In-Line)	Bayonet Lock Threaded	Gold	Straight	BNC Jack Female Socket	Nickel	Polytetrafluoroethylene (PTFE)	Between Series	4 GHz	Female to Female	Brass	BNC to SMA	Jack to Jack	Female Socket SMA Jack	Phosphor Bronze	50 Ohms
RF Industries RFB-1142-6	Free Hanging (In-Line)	Bayonet Lock Threaded	Gold	Straight	Female Socket SMA Jack	Nickel	Polytetrafluoroethylene (PTFE)	Between Series	4 GHz	Female to Female	Brass	BNC to SMA	Jack to Jack	BNC Jack Female Socket	Brass	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector BNC Jack, Female Socket To SMA Jack, Female Socket 50 Ohms

Technical documentation and resources

No documents available
