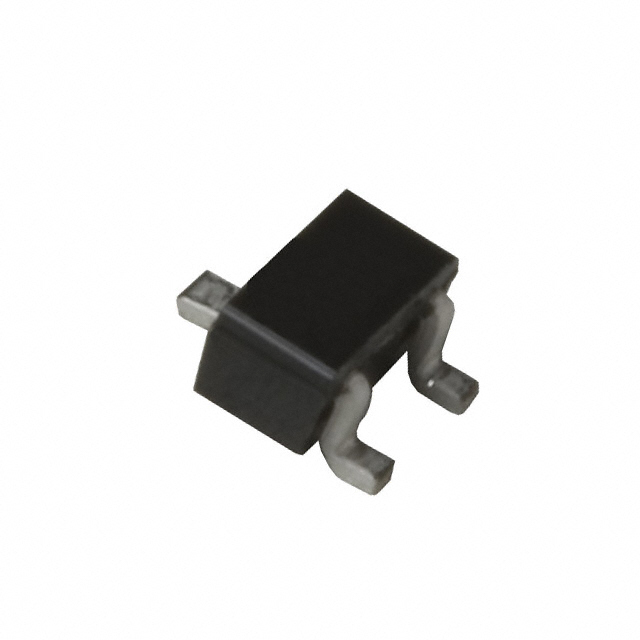

NE68119-T1-A

Obsolete

CEL

RF TRANS NPN 10V 7GHZ SOT523

Search across all available documentation for this part.

Obsolete

CEL

RF TRANS NPN 10V 7GHZ SOT523

Technical Specifications

Parameters and characteristics for this part

Specification	NE68119-T1-A

Current - Collector (Ic) (Max) [Max]	65 mA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	80
Frequency - Transition	7 GHz
Gain	10 dBi
Mounting Type	Surface Mount
Noise Figure (dB Typ @ f)	1.4 dB
Operating Temperature	150 °C
Package / Case	SOT-523
Power - Max [Max]	100 mW
Supplier Device Package	SOT-523
Transistor Type	NPN
Voltage - Collector Emitter Breakdown (Max) [Max]	10 V

Part	Mounting Type	Package / Case	Noise Figure (dB Typ @ f) [Max]	Noise Figure (dB Typ @ f) [Min]	Transistor Type	Voltage - Collector Emitter Breakdown (Max) [Max]	Power - Max [Max]	Gain [Min]	Gain [Max]	Current - Collector (Ic) (Max) [Max]	Frequency - Transition	Operating Temperature	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Supplier Device Package	Gain	Noise Figure (dB Typ @ f)
CEL NE68119-T1	Surface Mount	SOT-523	1.8 dB	1.4 dB	NPN	10 V	100 mW	10 dB	14 dB	65 mA	7 GHz	150 °C	80	3-SuperMiniMold (19)
CEL NE68119-T1-A	Surface Mount	SOT-523			NPN	10 V	100 mW			65 mA	7 GHz	150 °C	80	SOT-523	10 dBi	1.4 dB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

RF Transistor NPN 10V 65mA 7GHz 100mW Surface Mount SOT-523
