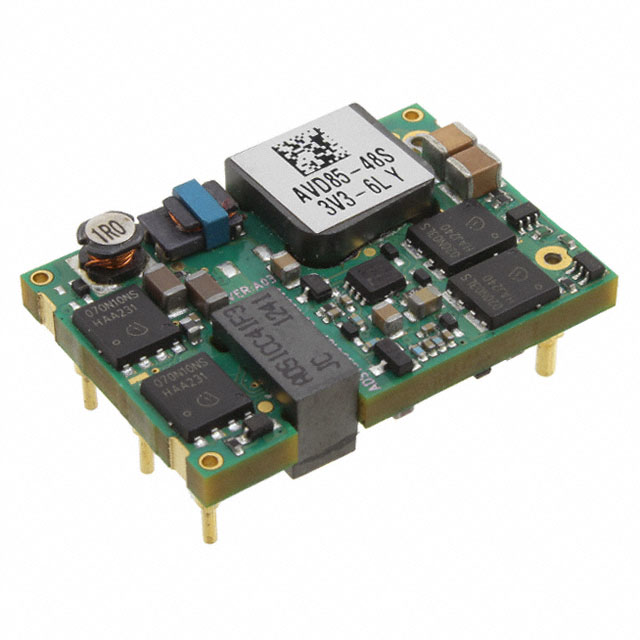

AVD85-48S3V3-6L

Active

ARTESYN / Advanced Energy

DC DC CONVERTER 3.3V 85W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AVD85-48S3V3-6L

Active

ARTESYN / Advanced Energy

DC DC CONVERTER 3.3V 85W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AVD85-48S3V3-6L

Applications	ITE (Commercial)
Control Features	Active Low, Enable
Current - Output (Max) [Max]	25 A
Efficiency	92 %
Features	Remote On/Off
Mounting Type	Through Hole
Number of Outputs	1
Package / Case	8-DIP Module, 1/16 Brick
Power (Watts)	85 W
Size / Dimension [x]	33.02 mm
Size / Dimension [x]	33 mm
Size / Dimension [y]	0.9 in
Size / Dimension [y]	22.9 mm
Size / Dimension [z]	0.41 in
Size / Dimension [z]	10.5 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	36 V
Voltage - Output 1	3.3 V

AVD85 Series

Part	Power (Watts)	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Applications	Voltage - Output 1	Package / Case	Number of Outputs	Current - Output (Max) [Max]	Mounting Type	Efficiency	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Isolation	Voltage - Input (Min) [Min]	Type	Supplier Device Package	Features	Control Features	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]
ARTESYN / Advanced Energy AVD85-48S05B-6L	85 W	12.7 mm	0.9 "	22.9 mm	0.5 in	33 mm	1.3 "	ITE (Commercial)	5 V	Sixteenth Brick	1	17 A	Through Hole	93.5 %	75 V	85 °C	-40 °C	1.5 kV	36 V	Isolated Module
ARTESYN / Advanced Energy AVD85B-48S12-6L	85 W	9.2 mm	0.9 "	22.9 mm	0.36 in	33 mm	1.3 "	ITE (Commercial)	12 V	Sixteenth Brick	1	7.1 A	Through Hole	93.3 %	75 V	85 °C	-40 °C	1.5 kV	36 V	Isolated Module	Sixteenth Brick	OCP OTP OVP Remote On/Off
ARTESYN / Advanced Energy AVD85-48S05-6L	85 W	10 mm	0.9 "	22.9 mm	0.39 in	33 mm	1.3 "	ITE (Commercial)	5 V	Sixteenth Brick	1	17 A	Through Hole	93.5 %	75 V	85 °C	-40 °C	1.5 kV	36 V	Isolated Module
ARTESYN / Advanced Energy AVD85-48S3V3-6L	85 W					33.02 mm		ITE (Commercial)	3.3 V	8-DIP Module 1/16 Brick	1	25 A	Through Hole	92 %	75 V				36 V	Isolated Module		Remote On/Off	Active Low Enable	0.41 in	33 mm	0.9 in	22.9 mm	10.5 mm
ARTESYN / Advanced Energy AVD85-48S3V3B-6L	85 W	12.7 mm	0.9 "	22.9 mm	0.5 in	33 mm	1.3 "	ITE (Commercial)	3.3 V	8-DIP Module 1/16 Brick	1	25 A	Through Hole	92 %	75 V				36 V	Isolated Module		Remote On/Off	Active Low Enable

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 44.41
		5	$ 44.06
		10	$ 43.71
		25	$ 42.33
		40	$ 40.24
		192	$ 37.47

Description

General part information

AVD85 Series

Isolated Module DC DC Converter 1 Output 3.3V 25A 36V - 75V Input
