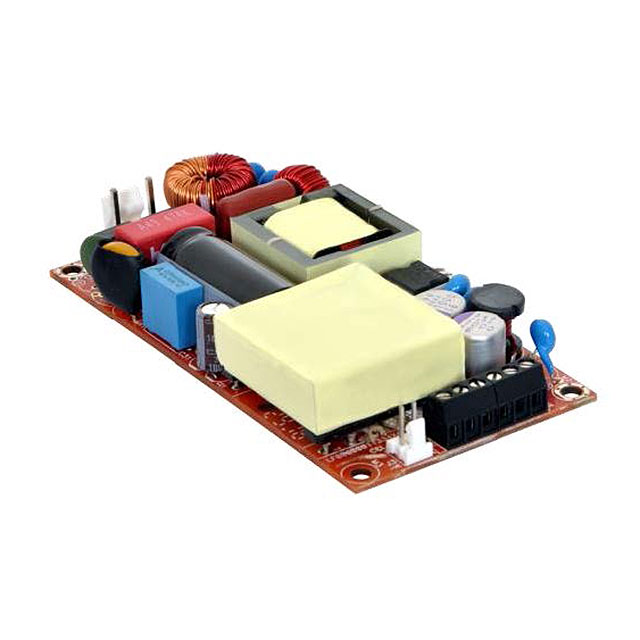

ABC180-1048L
ObsoleteEOS Power India Private Ltd
AC/DC CONVERTER 48V 120/180W
Deep-Dive with AI
Search across all available documentation for this part.
ABC180-1048L
ObsoleteEOS Power India Private Ltd
AC/DC CONVERTER 48V 120/180W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ABC180-1048L |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Current - Output 1 | 2.34 A |
| Efficiency | 92 % |
| Features | DC Input Capable, PFC, Standby Output, Universal Input, Adjustable Output |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Power (Watts) | 120 W, 180 W |
| Size / Dimension [x] | 4 in |
| Size / Dimension [x] | 101.6 mm |
| Size / Dimension [y] | 2 in |
| Size / Dimension [y] | 50.8 mm |
| Size / Dimension [z] | 19.1 mm |
| Size / Dimension [z] | 0.75 in |
| Type | Open Frame |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 80 VAC |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 48 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 114.07 | |
| 5 | $ 110.56 | |||
Description
General part information
ABC180 Series
Open Frame AC DC Converters 1 Output 48V 80 ~ 264 VAC Input
