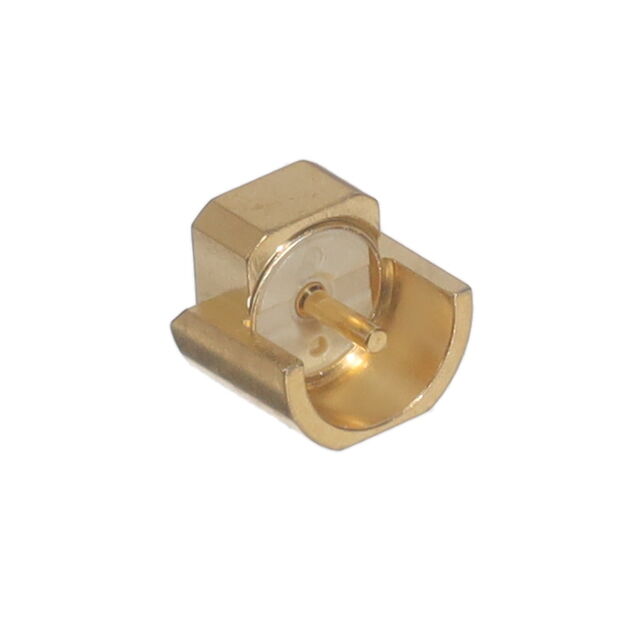

92_MMBX-S50-0-12/111_NE

Active

Huber+Suhner, Inc.

CONN MMBX 0HZ TO 12.4GHZ 50OHM SOLDER ST EDGE MOUNT F GOLD OVER NICKEL PHOSPHORUS SINGLE

Search across all available documentation for this part.

Active

Huber+Suhner, Inc.

CONN MMBX 0HZ TO 12.4GHZ 50OHM SOLDER ST EDGE MOUNT F GOLD OVER NICKEL PHOSPHORUS SINGLE

Technical Specifications

Parameters and characteristics for this part

Specification	92_MMBX-S50-0-12/111_NE

Body Finish	Gold
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	MMBX
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Liquid Crystal Polymer (LCP)
Fastening Type	Snap-On
Frequency - Max [Max]	12.4 GHz
Housing Color	Gold
Impedance	50 Ohms
Mounting Type	Cutout, Board Edge, Surface Mount
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	330 VDC

Part	Operating Temperature [Max]	Operating Temperature [Min]	Center Contact Material	Dielectric Material	Fastening Type	Mounting Type	Contact Termination	Number of Ports	Shield Termination	Connector Style	Body Material	Impedance	Housing Color	Center Contact Plating	Connector Type	Voltage Rating	Frequency - Max [Max]	Body Finish
Huber+Suhner, Inc. 92_MMBX-S50-0-12/111_NE	155 °C	-55 °C	Brass	Liquid Crystal Polymer (LCP)	Snap-On	Board Edge Cutout Surface Mount	Solder	1	Solder	MMBX	Brass	50 Ohms	Gold	Gold	Female Socket Jack	330 VDC	12.4 GHz	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

MMBX Connector Jack, Female Socket 50 Ohms Board Edge, Cutout; Surface Mount Solder
