34KM-K122-99W

Active

NMB TECHNOLOGIES

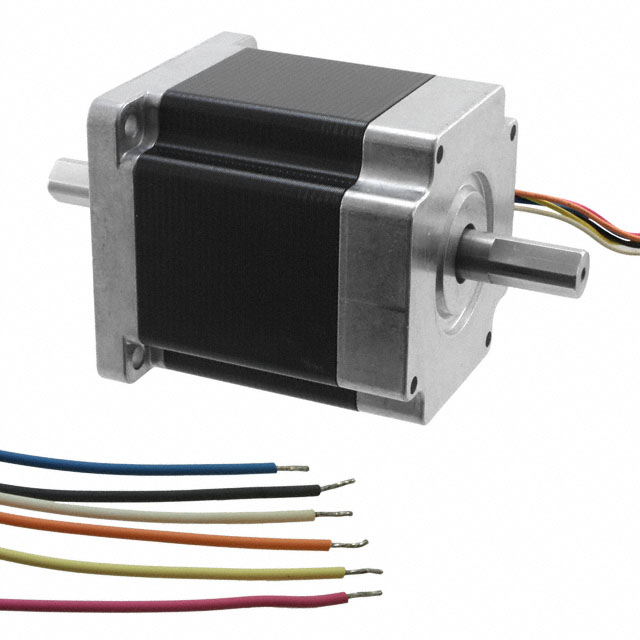

STEPPER MOTOR, STANDARD HYBRID, 4800 MN-M, 1.9 A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMinebeaMitsumi Nylon PA66 Notification Letter Hybrid Stepping Motor Standard Type +1

34KM-K122-99W

Active

NMB TECHNOLOGIES

STEPPER MOTOR, STANDARD HYBRID, 4800 MN-M, 1.9 A

Deep-Dive with AI

DocumentsMinebeaMitsumi Nylon PA66 Notification Letter Hybrid Stepping Motor Standard Type +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	34KM-K122-99W

Coil Resistance	3.9 Ohms
Coil Type	Unipolar
Current Rating (Amps)	1.9 A
Diameter - Shaft [diameter]	14 mm
Diameter - Shaft [diameter]	0.551 in
Features	Double Flatted Shaft
Length - Shaft and Bearing [x]	37 mm
Length - Shaft and Bearing [x]	1.457 in
Mounting Hole Spacing	2.74 in
Mounting Hole Spacing	69.6 mm
NEMA Frame Size	34
Operating Temperature [Max] [custom]	50 °C
Operating Temperature [Min] [custom]	-10 °C
Rotor Inertia	2400 gcm˛
Size / Dimension [x]	3.347 in
Size / Dimension [x]	85 mm
Size / Dimension [y]	3.347 in
Size / Dimension [y]	85 mm
Step Angle	1.8 °
Steps per Revolution	200
Termination Style	Wire Leads
Torque - Holding (oz-in / mNm)	4800 mNm
Torque - Holding (oz-in / mNm)	679.82 oz-in
Type	Hybrid, Dual Shaft
Voltage - Rated	24 VDC
Weight	6.4 lbs
Weight	2.9 kg

34KM Series

Part	Length - Shaft and Bearing [x]	Length - Shaft and Bearing [x]	Current Rating (Amps)	Torque - Holding (oz-in / mNm)	Torque - Holding (oz-in / mNm)	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]	Features	Accuracy	Operating Temperature [Min]	Operating Temperature [Max]	Coil Type	Rotor Inertia	Mounting Hole Spacing	Mounting Hole Spacing	Steps per Revolution	NEMA Frame Size	Coil Resistance	Voltage - Rated	Step Angle	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Type	Termination Style	Step Angle	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Weight	Weight
NMB TECHNOLOGIES 34KM-K006-99W	37 mm	1.457 in	4.8 A	2500 mNm	354.07 oz-in	14 mm	0.551 in	Double Flatted Shaft	Ý5%	-10 °C	50 °C	Unipolar	1200 gcm˛	2.74 in	69.6 mm	200	34	0.45 Ohms	24 VDC	1.8¯	3.347 in	3.347 in	85 mm	85 mm	Hybrid Dual Shaft	Wire Leads
NMB TECHNOLOGIES 34KM-K206-99W	37 mm	1.457 in	4.7 A	6700 mNm	948.92 oz-in	14 mm	0.551 in	Double Flatted Shaft				Unipolar	3700 gcm˛	2.74 in	69.6 mm	200	34	0.85 Ohms	24 VDC		3.347 in	3.347 in	85 mm	85 mm	Hybrid Dual Shaft	Wire Leads	1.8 °	-10 °C	50 °C	4 kg	8.8 lbs
NMB TECHNOLOGIES 34KM-K106-00W	37 mm	1.457 in	4.8 A	4800 mNm	679.82 oz-in	14 mm	0.551 in	Double Flatted Shaft				Unipolar	2400 gcm˛	2.74 in	69.6 mm	200	34		24 VDC		3.347 in	3.347 in	85 mm	85 mm	Hybrid	Wire Leads	1.8 °	-10 °C	50 °C	2.9 kg	6.4 lbs
NMB TECHNOLOGIES 34KM-K122-00W	37 mm	1.457 in	1.9 A	4800 mNm	679.82 oz-in	14 mm	0.551 in	Double Flatted Shaft				Unipolar	2400 gcm˛	2.74 in	69.6 mm	200	34	3.9 Ohms	24 VDC		3.347 in	3.347 in	85 mm	85 mm	Hybrid	Wire Leads	1.8 °	-10 °C	50 °C	2.9 kg	6.4 lbs
NMB TECHNOLOGIES 34KM-K112-99W	37 mm	1.457 in	3 A	4800 mNm	679.82 oz-in	14 mm	0.551 in	Double Flatted Shaft				Unipolar	2400 gcm˛	2.74 in	69.6 mm	200	34	1.5 Ohms	24 VDC		3.347 in	3.347 in	85 mm	85 mm	Hybrid Dual Shaft	Wire Leads	1.8 °	-10 °C	50 °C	2.9 kg	6.4 lbs
NMB TECHNOLOGIES 34KM-K122-99W	37 mm	1.457 in	1.9 A	4800 mNm	679.82 oz-in	14 mm	0.551 in	Double Flatted Shaft				Unipolar	2400 gcm˛	2.74 in	69.6 mm	200	34	3.9 Ohms	24 VDC		3.347 in	3.347 in	85 mm	85 mm	Hybrid Dual Shaft	Wire Leads	1.8 °	-10 °C	50 °C	2.9 kg	6.4 lbs

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 191.52
		5	$ 176.01
		10	$ 169.72
		25	$ 164.22
Newark	Each	1	$ 204.94

Description

General part information

34KM Series

Unipolar Stepper Motor Hybrid, Dual Shaft Frame Size 34 200.0 Step 1.9 A 24VDC

Documents

Technical documentation and resources

MinebeaMitsumi Nylon PA66 Notification Letter

Hybrid Stepping Motor Standard Type

Datasheet
