0311000042
ActiveMolex

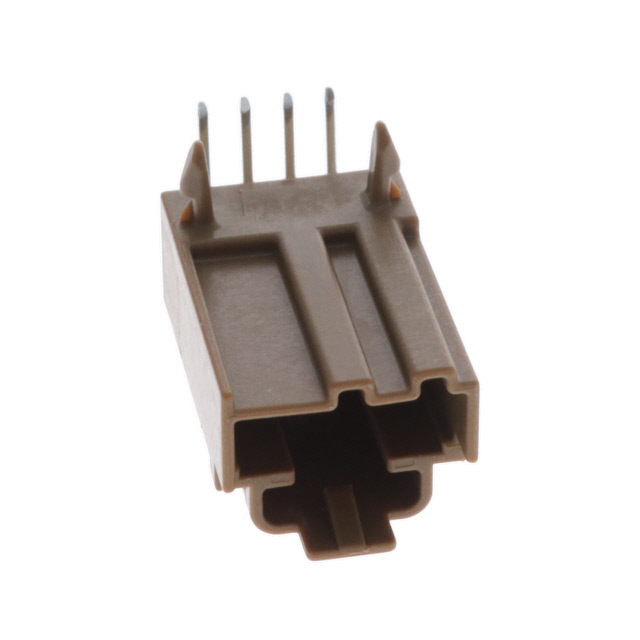

CONN HEADER R/A 4POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
0311000042
ActiveMolex
CONN HEADER R/A 4POS 2.54MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0311000042 |
|---|---|
| Applications | Automotive |
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 60 Áin |
| Contact Finish Thickness - Mating | 1.52 Ám |
| Contact Length - Post | 0.139 in |
| Contact Length - Post | 3.53 mm |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Latch Holder |
| Insulation Color | Brown |
| Insulation Height | 12.88 mm |
| Insulation Height | 0.507 in |
| Insulation Material | Syndiotactic Polystyrene (SPS) |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 4 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 3.06 | |
| 10 | $ 2.33 | |||
| 80 | $ 1.88 | |||
| 440 | $ 1.62 | |||
| 945 | $ 1.53 | |||
| 4900 | $ 1.37 | |||
Description
General part information
031100 Series
Connector Header Through Hole, Right Angle 4 position 0.100" (2.54mm)
