BECP75H25-T

Active

Panduit Corp

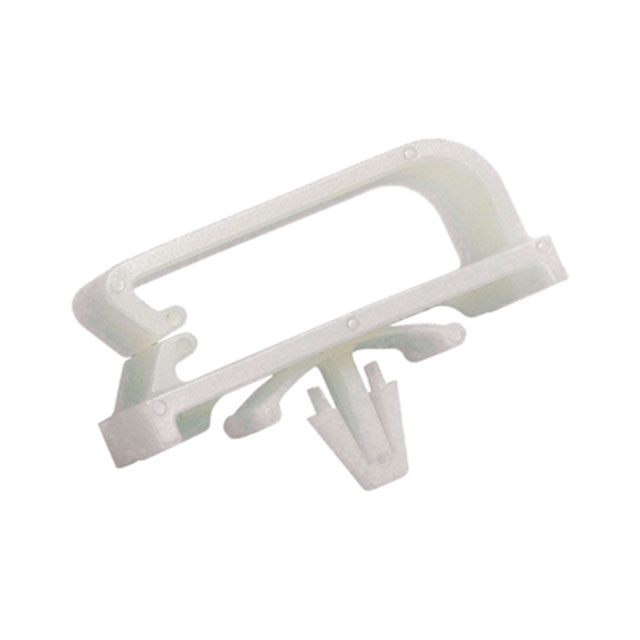

CBL CLIP WIRE SADDLE NAT ARROW

Search across all available documentation for this part.

Active

Panduit Corp

CBL CLIP WIRE SADDLE NAT ARROW

Technical Specifications

Parameters and characteristics for this part

Specification	BECP75H25-T

Color	Natural
Height [z]	24.64 mm
Height [z]	0.97 in
Length [x]	1.47 in
Length [x]	37.34 mm
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Arrowhead, Winged
Opening Size	19.05 mm
Opening Size [z]	0.75 in
Panel Hole Size	6.35 mm
Panel Hole Size	0.25 in
Panel Thickness [x]	1.9 mm
Panel Thickness [x]	0.075 in
Type	Clip, Wire Saddle
Type Attributes	Side Entry
Width	18.54 mm
Width [y]	0.73 in

Part	Panel Hole Size	Panel Hole Size	Material	Color	Length [x]	Length [x]	Type Attributes	Mounting Type	Panel Thickness [x]	Panel Thickness [x]	Type	Width	Width [y]	Opening Size [z]	Opening Size	Height [z]	Height [z]	Material Flammability Rating
Panduit Corp BECP75H25-T	6.35 mm	0.25 in	Polyamide (PA66) Nylon 6/6	Natural	1.47 in	37.34 mm	Side Entry	Arrowhead Winged	1.9 mm	0.075 in	Clip Wire Saddle	18.54 mm	0.73 in	0.75 in	19.05 mm	24.64 mm	0.97 in	UL94 V-2
Panduit Corp BECP75H25-T20	6.35 mm	0.25 in	Polyamide (PA66) Nylon 6/6	Black	1.47 in	37.34 mm	Side Entry	Arrowhead Winged	1.9 mm	0.075 in	Clip Wire Saddle	18.54 mm	0.73 in	0.75 in	19.05 mm	24.64 mm	0.97 in	UL94 V-2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Clip, Wire Saddle Natural Arrowhead, Winged 0.750" (19.05mm)
