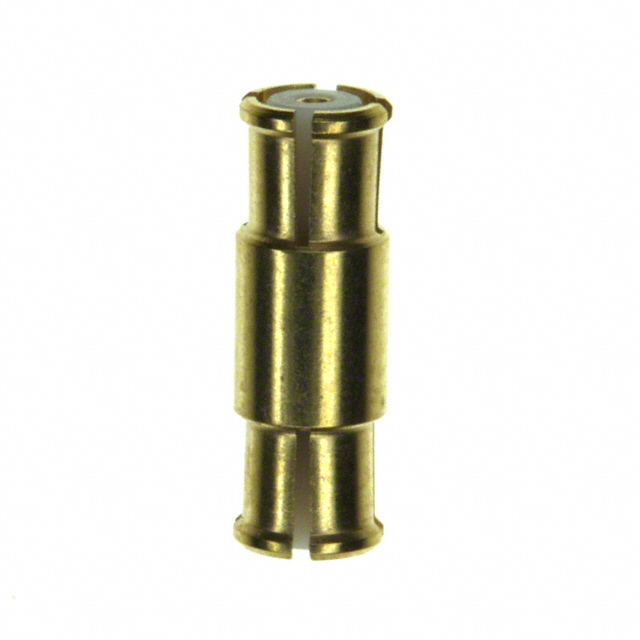

SMP-FSBA-990

Active

Amphenol RF

CONN ADAPT PLUG-PLUG SMP 50 OHM

Deep-Dive with AI

Search across all available documentation for this part.

SMP-FSBA-990

Active

Amphenol RF

CONN ADAPT PLUG-PLUG SMP 50 OHM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SMP-FSBA-990

Adapter Series	SMP to SMP
Adapter Type	Plug to Plug
Body Finish	Gold
Body Material	Beryllium Copper
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Same Series
Convert From (Adapter End)	Female Socket, SMP Plug
Convert To (Adapter End)	SMP Plug, Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	26.5 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

SMP-FSBA Series

Part	Impedance	Style	Mounting Type	Adapter Type	Frequency - Max [Max]	Convert To (Adapter End)	Body Finish	Adapter Series	Body Material	Dielectric Material	Fastening Type	Center Gender	Convert From (Adapter End)	Conversion Type	Center Contact Plating	Center Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Includes
Amphenol RF SMP-FSBA-1316	50 Ohms	Straight	Free Hanging (In-Line)	Plug to Plug	26.5 GHz	Female Socket SMP Plug	Gold	SMP to SMP	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Snap-On	Female to Female	Female Socket SMP Plug	Same Series	Gold	Beryllium Copper	-65 ░C	165 °C
Amphenol RF SMP-FSBA-145	50 Ohms	Straight	Free Hanging (In-Line)	Plug to Plug	26.5 GHz	Female Socket SMP Plug	Gold	SMP to SMP	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Snap-On	Female to Female	Female Socket SMP Plug	Same Series	Gold	Beryllium Copper	-65 ░C	165 °C
Amphenol RF SMP-FSBA-645	50 Ohms	Straight	Free Hanging (In-Line)	Plug to Plug	26.5 GHz	Female Socket SMP Plug	Gold	SMP to SMP	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Snap-On	Female to Female	Female Socket SMP Plug	Same Series	Gold	Beryllium Copper	-65 ░C	165 °C
Amphenol RF SMP-FSBA-739	50 Ohms	Straight	Free Hanging (In-Line)	Plug to Plug	26.5 GHz	Female Socket SMP Plug	Gold	SMP to SMP	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Snap-On	Female to Female	Female Socket SMP Plug	Same Series	Gold	Beryllium Copper	-65 ░C	165 °C
Amphenol RF SMP-FSBA-093	50 Ohms	Straight	Free Hanging (In-Line)	Plug to Plug	26.5 GHz	Female Socket SMP Plug	Gold	SMP to SMP	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Snap-On	Female to Female	Female Socket SMP Plug	Same Series	Gold	Beryllium Copper	-65 ░C	165 °C
Amphenol RF SMP-FSBA-1716	50 Ohms	Straight	Free Hanging (In-Line)	Plug to Plug	26.5 GHz	Female Socket SMP Plug	Gold	SMP to SMP	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Snap-On	Female to Female	Female Socket SMP Plug	Same Series	Gold	Beryllium Copper	-65 ░C	165 °C
Amphenol RF SMP-FSBA-594	50 Ohms	Straight	Free Hanging (In-Line)	Plug to Plug	26.5 GHz	Female Socket SMP Plug	Gold	SMP to SMP	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Snap-On	Female to Female	Female Socket SMP Plug	Same Series	Gold	Beryllium Copper	-65 ░C	165 °C	1 Connector 1 Spring
Amphenol RF SMP-FSBA-990	50 Ohms	Straight	Free Hanging (In-Line)	Plug to Plug	26.5 GHz	Female Socket SMP Plug	Gold	SMP to SMP	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Snap-On	Female to Female	Female Socket SMP Plug	Same Series	Gold	Beryllium Copper	-65 ░C	165 °C
Amphenol RF SMP-FSBA-090	50 Ohms	Straight	Free Hanging (In-Line)	Plug to Plug	26.5 GHz	Female Socket SMP Plug	Gold	SMP to SMP	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Snap-On	Female to Female	Female Socket SMP Plug	Same Series	Gold	Beryllium Copper	-65 ░C	165 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 26.26
		10	$ 20.25
		25	$ 18.34
		50	$ 17.04
		100	$ 15.87
		250	$ 14.49
		500	$ 13.56

Description

General part information

SMP-FSBA Series

Adapter Coaxial Connector SMP Plug, Female Socket To SMP Plug, Female Socket 50 Ohms

Documents

Technical documentation and resources

No documents available
