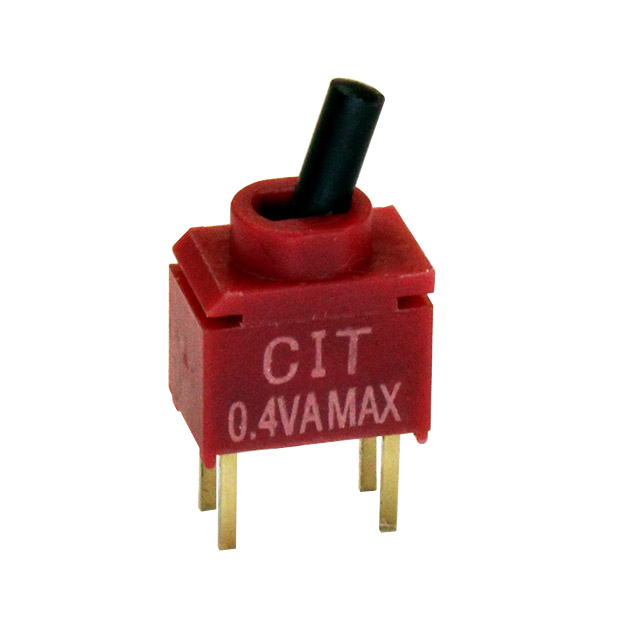

CST10T2CR

Active

CIT Relay and Switch

SWITCH TOGGLE SPST 0.4VA 20V

Search across all available documentation for this part.

Active

CIT Relay and Switch

SWITCH TOGGLE SPST 0.4VA 20V

Technical Specifications

Parameters and characteristics for this part

Specification	CST10T2CR

Actuator Length [x]	3.8 mm
Actuator Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Actuator Type	Standard Round
Bushing Thread	Unthreaded
Circuit	SPST
Current Rating (Amps)	0.4 VA
Electrical Life	40000 Cycles
Illumination	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Switch Function	On-Off
Termination Style	PC Pin
Voltage Rating - AC	20 V
Voltage Rating - DC	20 V

Part	Current Rating (Amps)	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Bushing Thread	Termination Style	Voltage Rating - AC	Switch Function	Ingress Protection	Circuit	Illumination	Actuator Length [x]	Actuator Type	Actuator Material	Electrical Life
CIT Relay and Switch CST10T2CR	0.4 VA	20 V	85 °C	-40 °C	Through Hole	Unthreaded	PC Pin	20 V	On-Off	IP67 - Dust Tight Waterproof	SPST	Non-Illuminated	3.8 mm	Standard Round	Polyamide (PA66) Nylon 6/6 Glass Filled	40000 Cycles

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch SPST Through Hole
