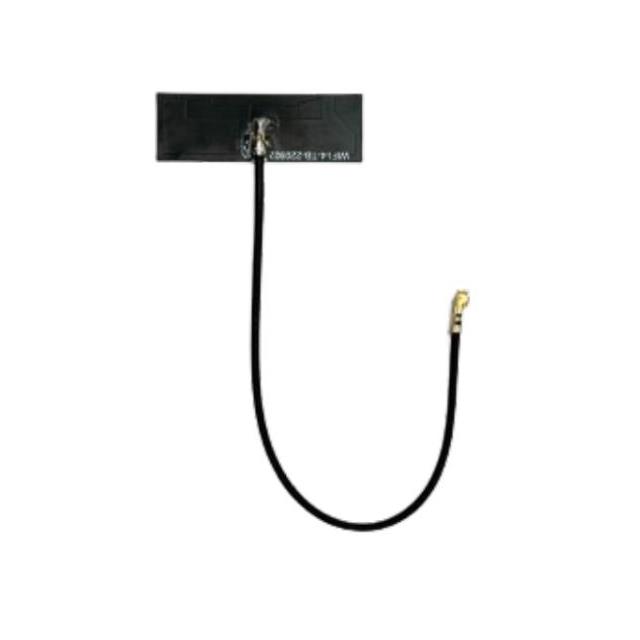

ST1224-10-401-A
ActiveAmphenol RF
RF ANTENNA INTERNAL AMC PLUG MUL
Deep-Dive with AI
Search across all available documentation for this part.
ST1224-10-401-A
ActiveAmphenol RF
RF ANTENNA INTERNAL AMC PLUG MUL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ST1224-10-401-A |
|---|---|
| Antenna Type | PCB Trace |
| Applications | Wi-Fi |
| Features | Cable |
| Features | 100 mm |
| Frequency (Center/Band) | 2.45 GHz, 6.18 GHz |
| Frequency Group | 4 GHz |
| Frequency Group [Max] | 3 GHz |
| Frequency Group [Min] | 2 GHz |
| Frequency Range [Max] | 7.2 GHz, 2.5 GHz |
| Frequency Range [Min] | 5.15 GHz, 2.4 GHz |
| Gain | 2.1 dBi |
| Height (Max) [Max] | 0.2 mm |
| Height (Max) [Max] | 0.008 in |
| Mounting Type | Adhesive |
| Number of Bands | 2 |
| Power - Max [Max] | 1 W |
| Return Loss | -10 dB |
| RF Family/Standard | WiFi |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 3.96 | |
| 10 | $ 3.56 | |||
| 25 | $ 3.36 | |||
| 100 | $ 2.91 | |||
| 250 | $ 2.77 | |||
| 500 | $ 2.48 | |||
| 1000 | $ 2.09 | |||
| 2500 | $ 1.99 | |||
| 5000 | $ 1.91 | |||
Description
General part information
ST1224-10 Series
2.45GHz, 6.18GHz Wi-Fi PCB Trace RF Antenna 2.4GHz ~ 2.5GHz, 5.15GHz ~ 7.2GHz 2.1dBi Adhesive
