92-7068-8820
ActiveKester Solder
SOLDER FLUX-CORED/245 .020 500G
Deep-Dive with AI
Search across all available documentation for this part.
92-7068-8820
ActiveKester Solder
SOLDER FLUX-CORED/245 .020 500G
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 92-7068-8820 |
|---|---|
| Composition | Sn96.5Ag3Cu0.5 (96.5/3/0.5) |
| Diameter [diameter] | 0.51 mm |
| Diameter [diameter] | 0.02 in |
| Flux Type | No-Clean |
| Form | Spool |
| Form | 17.64 oz, 500 g |
| Melting Point [Max] | 218 °C |
| Melting Point [Max] | 424 °F |
| Melting Point [Min] | 217 °C |
| Melting Point [Min] | 423 °F |
| Storage/Refrigeration Temperature [Max] | 40 °C |
| Storage/Refrigeration Temperature [Min] | 10 °C |
| Type | Wire Solder |
| Wire Gauge | 24 AWG, 25 mmý |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 147.94 | |
Description
General part information
92-7068 Series

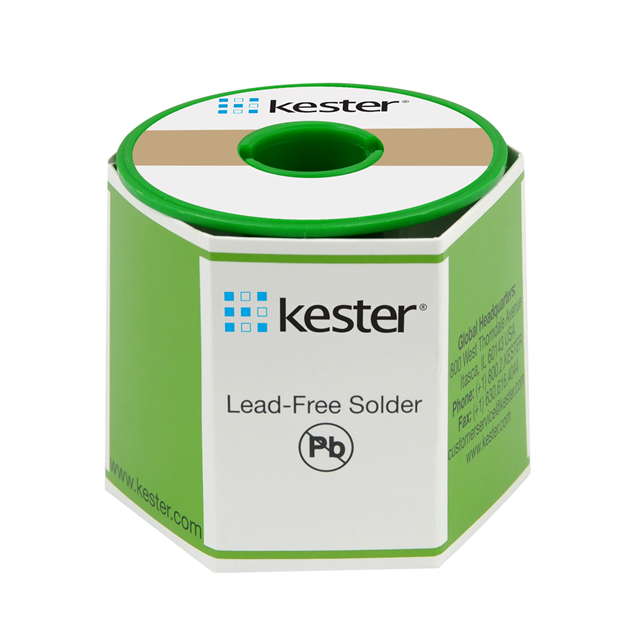

Lead Free No-Clean Wire Solder Sn96.5Ag3Cu0.5 (96.5/3/0.5) 24 AWG, 25 SWG Spool, 17.64 oz (500g)
Documents
Technical documentation and resources
