RR9LI1500T00NAIMR6B

Active

GlobTek, Inc.

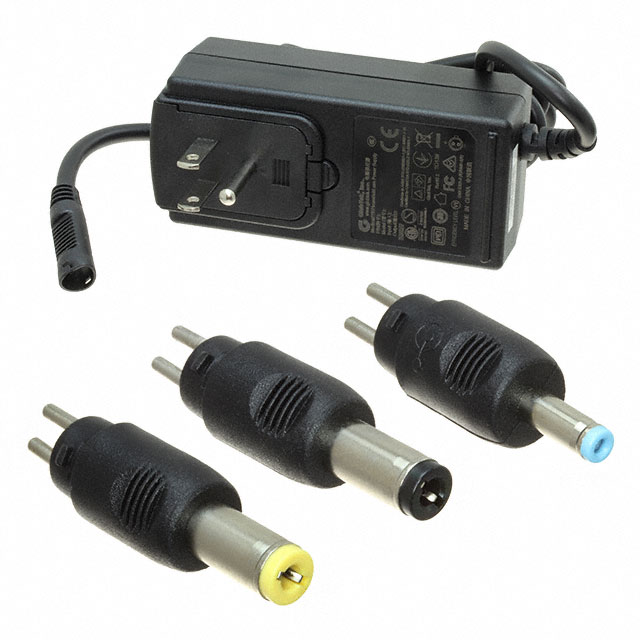

AC/DC DSKTP/WALL MT ADPT 24V 36W

Search across all available documentation for this part.

Active

GlobTek, Inc.

AC/DC DSKTP/WALL MT ADPT 24V 36W

Technical Specifications

Parameters and characteristics for this part

Specification	RR9LI1500T00NAIMR6B

Applications	Household Appliances, ITE (Commercial), Medical
Approval Agency	PSE, ETL, CCC, FCC, RCM, UKRSepro, LPS, S-Mark, cETLus, CE, CB, EAC, VCCI
Cord Length	1.5 m
Cord Length	59 in
Current - Output (Max) [Max]	1.5 A
Efficiency	Level VI
Form	Wall Mount (Class I), Desktop
Input Connector	IEC 320-C6, Multi-Blade (Single Blade Included)
Input Type	Multi-Blade (Single Blade Included), Cord (Sold Separately)
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-20 C
Output Connector	Barrel Plug Kit, 1.3mm x 3.5mm
Power (Watts)	36 W
Region Utilized	International
Size / Dimension [x]	4 in
Size / Dimension [x]	101.7 mm
Size / Dimension [y]	46.5 mm
Size / Dimension [y]	1.83 in
Size / Dimension [z]	38.2 mm
Size / Dimension [z]	1.5 "
Standard Number	1310, 60950-1, 60335-1, 62368-1, 60601-1-2, 60601-1-11
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	24 V

Part	Standard Number	Cord Length	Cord Length	Form	Applications	No Load Power Consumption [Max]	Approval Agency	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Power (Watts)	Current - Output (Max) [Max]	Region Utilized	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output	Input Type	Output Connector	Efficiency	Input Connector	Voltage - Input [Min]	Voltage - Input [Max]
GlobTek, Inc. RR9LI1500T00NAIMR6B	1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1	1.5 m	59 in	Desktop Wall Mount (Class I)	Household Appliances ITE (Commercial) Medical	75 mW	CB CCC CE cETLus EAC ETL FCC LPS PSE RCM S-Mark UKRSepro VCCI	38.2 mm	4 in	46.5 mm	1.83 in	101.7 mm	1.5 "	36 W	1.5 A	International	-20 C	40 °C	24 V	Cord (Sold Separately) Multi-Blade (Single Blade Included)	1.3mm x 3.5mm Barrel Plug Kit	Level VI	IEC 320-C6 Multi-Blade (Single Blade Included)	90 VAC	264 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

24V 36 W AC/DC External Desktop, Wall Mount (Class I) Adapter Cord (Sold Separately), Multi-Blade (Single Blade Included) Input
