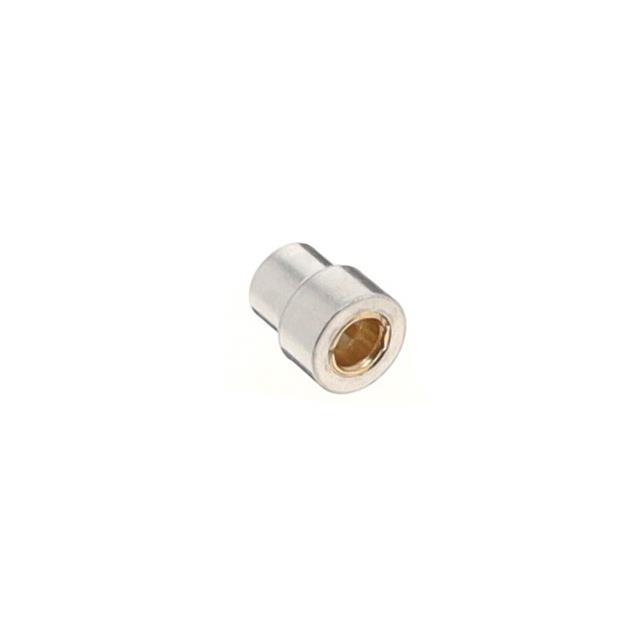

0287-0-15-80-16-27-10-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT

Deep-Dive with AI

Search across all available documentation for this part.

0287-0-15-80-16-27-10-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0287-0-15-80-16-27-10-0

Accepts Pin Diameter [Max]	0.86 mm
Accepts Pin Diameter [Max]	0.034 "
Accepts Pin Diameter [Min]	0.56 mm
Accepts Pin Diameter [Min]	0.022 "
Accepts Square Pin Size [diameter]	0.64 mm
Accepts Square Pin Size [diameter]	0.025 in
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Beryllium Copper
Flange Diameter [diameter]	0.08 in
Flange Diameter [diameter]	2.03 mm
Length - Overall [x]	2.29 mm
Length - Overall [x]	0.09 in
Mounting Hole Diameter [diameter]	1.65 mm
Mounting Hole Diameter [diameter]	0.065 in
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pin Hole Diameter [diameter]	0.051 in
Pin Hole Diameter [diameter]	1.3 mm
Socket Depth	0.09 "
Socket Depth	2.29 mm
Tail Type	No Tail
Termination	Solder

0287-0 Series

Part	Length - Overall [x]	Length - Overall [x]	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Socket Depth	Socket Depth	Accepts Square Pin Size [diameter]	Accepts Square Pin Size [diameter]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]	Flange Diameter [diameter]	Flange Diameter [diameter]	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Tail Type
Mill-Max Manufacturing Corp. 0287-0-15-15-16-14-10-0	2.29 mm	0.09 in	10 Áin	0.25 Ám	Beryllium Copper	0.09 "	2.29 mm	0.64 mm	0.025 in	0.86 mm	0.034 "	0.56 mm	0.022 "	0.08 in	2.03 mm	Solder	-55 °C	125 °C	Gold	0.051 in	1.3 mm	1.65 mm	0.065 in	No Tail
Mill-Max Manufacturing Corp. 0287-0-15-01-16-27-10-0	2.29 mm	0.09 in	30 Áin	0.76 Ám	Beryllium Copper	0.09 "	2.29 mm	0.64 mm	0.025 in	0.86 mm	0.034 "	0.56 mm	0.022 "	0.08 in	2.03 mm	Solder	-55 °C	125 °C	Gold	0.051 in	1.3 mm	1.65 mm	0.065 in	No Tail
Mill-Max Manufacturing Corp. 0287-0-15-01-16-14-10-0	2.29 mm	0.09 in	10 Áin	0.25 Ám	Beryllium Copper	0.09 "	2.29 mm	0.64 mm	0.025 in	0.86 mm	0.034 "	0.56 mm	0.022 "	0.08 in	2.03 mm	Solder	-55 °C	125 °C	Gold	0.051 in	1.3 mm	1.65 mm	0.065 in	No Tail
Mill-Max Manufacturing Corp. 0287-0-15-80-16-27-10-0	2.29 mm	0.09 in	30 Áin	0.76 Ám	Beryllium Copper	0.09 "	2.29 mm	0.64 mm	0.025 in	0.86 mm	0.034 "	0.56 mm	0.022 "	0.08 in	2.03 mm	Solder	-55 °C	125 °C	Gold	0.051 in	1.3 mm	1.65 mm	0.065 in	No Tail
Mill-Max Manufacturing Corp. 0287-0-15-80-16-80-10-0	2.29 mm	0.09 in	200 Áin	5.08 Ám	Beryllium Copper	0.09 "	2.29 mm	0.64 mm	0.025 in	0.86 mm	0.034 "	0.56 mm	0.022 "	0.08 in	2.03 mm	Solder	-55 °C	125 °C	Tin	0.051 in	1.3 mm	1.65 mm	0.065 in	No Tail
Mill-Max Manufacturing Corp. 0287-0-15-80-16-14-10-0	2.29 mm	0.09 in	10 Áin	0.25 Ám	Beryllium Copper	0.09 "	2.29 mm	0.64 mm	0.025 in	0.86 mm	0.034 "	0.56 mm	0.022 "	0.08 in	2.03 mm	Solder	-55 °C	125 °C	Gold	0.051 in	1.3 mm	1.65 mm	0.065 in	No Tail

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.40
		10	$ 1.18
		25	$ 1.13
		50	$ 1.11
		100	$ 1.06
		250	$ 0.97
		500	$ 0.87
		1000	$ 0.77
		3000	$ 0.70

Description

General part information

0287-0 Series

Pin Receptacle Connector 0.022" ~ 0.034" (0.56mm ~ 0.86mm) No Tail Solder
