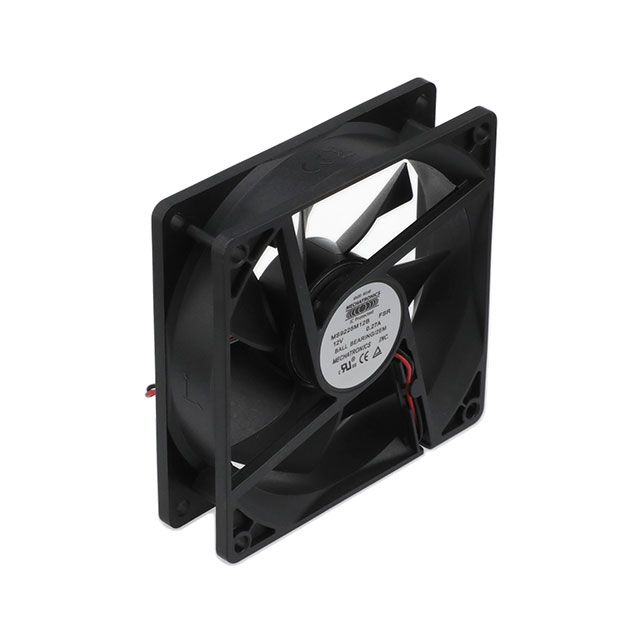

MS9225M12B-FSR-2EM

Active

Mechatronics Bearing Group

FAN AXIAL 92X25MM 12VDC WIRE

Search across all available documentation for this part.

Active

Mechatronics Bearing Group

FAN AXIAL 92X25MM 12VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Part	Air Flow	Air Flow	Fan Type	Material - Blade	Current Rating (Amps)	Features	RPM	Termination	Static Pressure	Static Pressure	Material - Frame	Width [y]	Bearing Type	Voltage - Rated	Weight	Weight	Noise	Ingress Protection	Voltage - Rated [custom]
Mechatronics Bearing Group MS9225H24B-FSR	73.6 CFM	2.06 m³/min	Tubeaxial	Plastic	0.2 A	Auto Restart	4500 RPM	2 Wire Leads	84.7 Pa	0.34 in H2O	Plastic	25 mm	Ball	24 VDC	0.225 lb	102.06 g	49 dB
Mechatronics Bearing Group MS9225H24B-FSR-2EM	73.6 CFM	2.06 m³/min	Tubeaxial	Plastic	0.2 A	Auto Restart	4500 RPM	2 Wire Leads	84.7 Pa	0.34 in H2O	Plastic	25 mm	Ball	24 VDC	0.225 lb	102.06 g	49 dB	IP68 - Dust Tight Waterproof
Mechatronics Bearing Group MS9225M12B-FSR-2EM	58.1 CFM	1.63 m³/min	Tubeaxial	Plastic	270 mA	Auto Restart	3500 RPM	2 Wire Leads	55 Pa	0.22 in H2O	Plastic	25 mm	Ball	12 VDC	0.225 lb	102.06 g	43 dB	IP68 - Dust Tight Waterproof
Mechatronics Bearing Group MS9225H48B-FSR	73.6 CFM	2.06 m³/min	Tubeaxial	Plastic	110 mA	Auto Restart	4500 RPM	2 Wire Leads	84.7 Pa	0.34 in H2O	Plastic	25 mm	Ball		0.225 lb	102.06 g	49 dB		48 VDC
Mechatronics Bearing Group MS9225H48B-FSR-2EM	73.6 CFM	2.06 m³/min	Tubeaxial	Plastic	110 mA	Auto Restart	4500 RPM	2 Wire Leads	84.7 Pa	0.34 in H2O	Plastic	25 mm	Ball		0.225 lb	102.06 g	49 dB	IP68 - Dust Tight Waterproof	48 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 12VDC Square - 92mm L x 92mm H Ball 58.1 CFM (1.63m³/min) 2 Wire Leads
