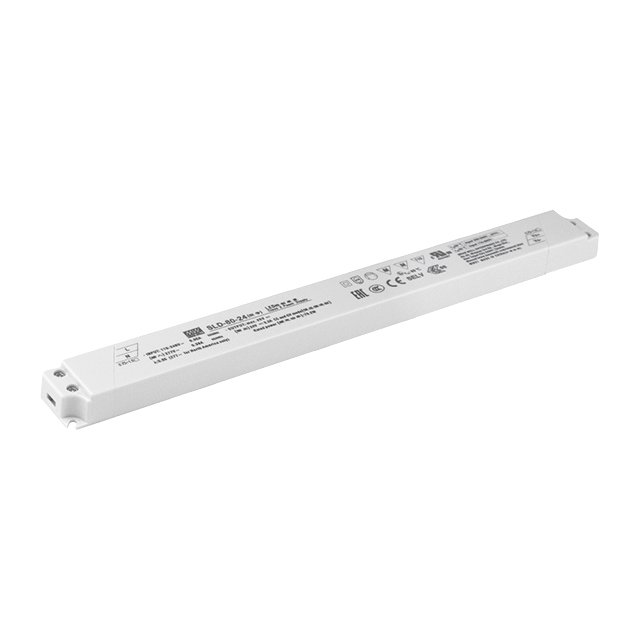

SLD-80-24
ActiveMEAN WELL USA Inc.
80W SLIM LINEAR TYPE LED DRIVER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SLD-80-24 |
|---|---|
| Approval Agency | CCC, CB, cURus, EAC, ENEC, RCM, CE |
| Current - Output (Max) [Max] | 3.3 A |
| Efficiency | 91.5 % |
| Features | OTP, SCP, OVP, OCP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -20 C |
| Power (Watts) | 79 W |
| Size / Dimension [x] | 12.6 " |
| Size / Dimension [x] | 320 mm |
| Size / Dimension [y] | 30 mm |
| Size / Dimension [y] | 1.18 in |
| Size / Dimension [z] | 0.66 in |
| Size / Dimension [z] | 16.8 mm |
| Termination Style | Terminal Block |
| Topology | AC DC Converter |
| Type | Constant Current, Voltage |
| Voltage - Input (Max) [Max] | 305 VAC |
| Voltage - Input (Min) [Min] | 110 VAC |
| Voltage - Isolation | 3750 V |
| Voltage - Output | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 31.06 | |
| 5 | $ 28.39 | |||
| 10 | $ 27.30 | |||
| 25 | $ 25.94 | |||
Description
General part information
SLD-80 Series
3.3A 24V Constant Current, Voltage LED Driver AC DC Converter Topology 1 Output
