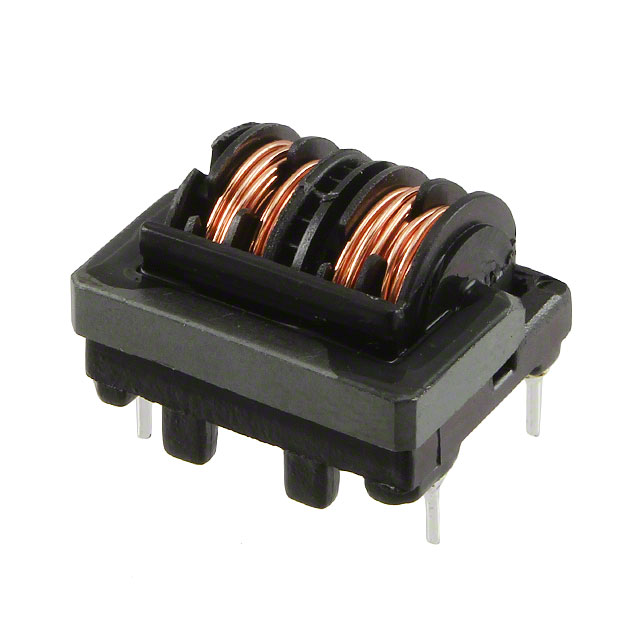

SS17HB-R03300
ActiveKEMET
CMC 30MH 300MA 2LN TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SS17HB-R03300
ActiveKEMET
CMC 30MH 300MA 2LN TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SS17HB-R03300 |
|---|---|
| Current Rating (Max) [Max] | 300 mA |
| DC Resistance (DCR) (Max) [Max] | 2.6 Ohm |
| Filter Type | Power Line |
| Height (Max) [Max] | 13.8 mm |
| Height (Max) [Max] | 0.543 in |
| Inductance @ Frequency | 30 mH |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature [Max] | 120 °C |
| Operating Temperature [Min] | -25 °C |
| Package / Case | 4 Lead |
| Package / Case | Vertical |
| Size / Dimension [x] | 20 mm |
| Size / Dimension [x] | 0.787 in |
| Size / Dimension [y] | 17.85 mm |
| Size / Dimension [y] | 0.703 in |
| Voltage Rating - AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.53 | |
| 10 | $ 1.81 | |||
| 25 | $ 1.62 | |||
| 40 | $ 1.53 | |||
| 80 | $ 1.43 | |||
| 230 | $ 1.29 | |||
| 440 | $ 1.23 | |||
| 945 | $ 1.16 | |||
| 4900 | $ 1.05 | |||
Description
General part information
SS17HB Series
30 mH @ 1 kHz 2 Line Common Mode Choke Through Hole 300mA DCR 2.6Ohm
