BD18347EFV-EVK-101

Active

Rohm Semiconductor

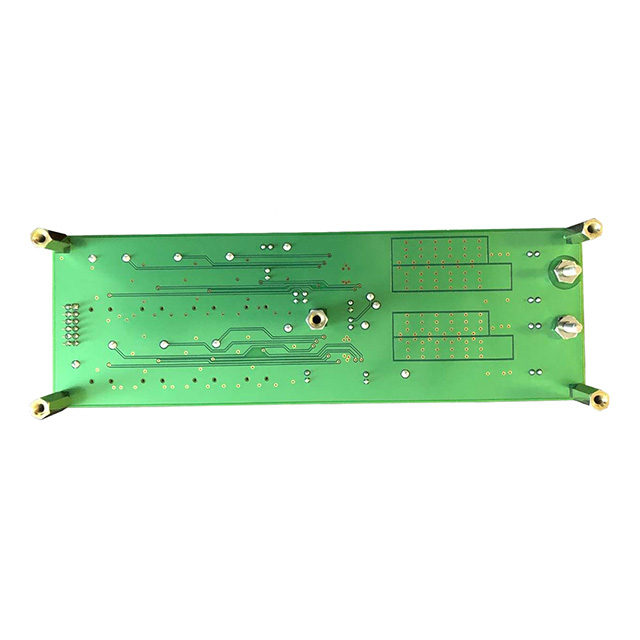

EVAL BOARD FOR BD18347

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BD18347EFV-EVK-101

Active

Rohm Semiconductor

EVAL BOARD FOR BD18347

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BD18347EFV-EVK-101

Contents	Board(s)
Current - Output / Channel	100 mA
Features	Dimmable
Outputs and Type	4
Outputs and Type	Non-Isolated, Non-Isolated Outputs
Supplied Contents	Board(s)
Utilized IC / Part	BD18347
Voltage - Input [Max]	20 V
Voltage - Input [Min]	5.5 V
Voltage - Output	40 V

BD18347AEFV-M Series

For Automotive, 40V 150mA 4ch Constant Current LED Driver

Part	Supplied Contents	Current - Output / Channel	Contents	Voltage - Input [Max]	Voltage - Input [Min]	Outputs and Type	Outputs and Type	Utilized IC / Part	Features	Voltage - Output	Supplier Device Package	Voltage - Supply (Min) [Min]	Topology	Mounting Type	Grade	Voltage - Supply (Max) [Max]	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Type	Package / Case	Package / Case [y]	Package / Case [y]	Dimming	Qualification	Applications	Frequency
Rohm Semiconductor BD18347EFV-EVK-101	Board(s)	100 mA	Board(s)	20 V	5.5 V	4	Non-Isolated Non-Isolated Outputs	BD18347	Dimmable	40 V
Rohm Semiconductor BD18347AEFV-ME2		150 mA								40 V	HTSSOP-B16	5.5 V	Constant Current	Surface Mount	Automotive	20 V	4	125 °C	-40 °C	Linear	16-VSSOP	0.173 in	4.4 mm	PWM
Rohm Semiconductor BD18347EFV-ME2		150 mA									HTSSOP-B16	5.5 V		Surface Mount	Automotive	20 V	4	125 °C	-40 °C	Power Switch	16-VSSOP	0.173 in	4.4 mm	PWM	AEC-Q100	Lighting	750 Hz

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 256.25

Description

General part information

BD18347AEFV-M Series

BD18347EFV-M are 40V-withstanding constant current LED driver for automotive applications. It is a 4 channel LED driver with the built-in energy sharing control which can realize to make the board size small. High reliability can be realized with LED Open Detection, the OUTx (all later x=1 to 4) pin Short Circuit Protection, Over Voltage Mute and Thermal Shutdown Function. In case the output OUTx pin has 3 LEDs in series, BD18337EFV-M has to be used, in case of 2 LEDs in series, this BD18347EFV-M has to be used.
