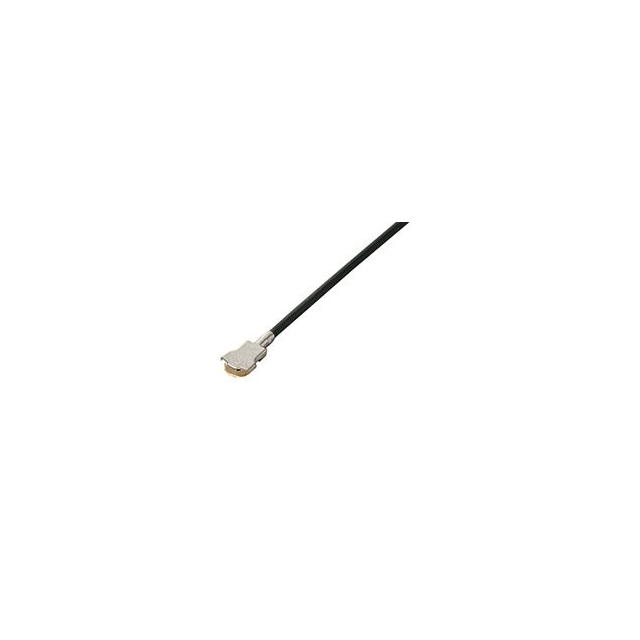

MXLF56LF1000
ObsoleteMurata Power Solutions Inc.
CBL ASSY LSC PLUG 3.937"
Deep-Dive with AI
Search across all available documentation for this part.
MXLF56LF1000
ObsoleteMurata Power Solutions Inc.
CBL ASSY LSC PLUG 3.937"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MXLF56LF1000 |
|---|---|
| 1st Connector | LSC Plug, Right Angle |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | Cable (Round) |
| Cable Type | 0.53mm OD Coaxial Cable |
| Color | Black |
| Features | Shielded |
| Frequency - Max [Max] | 6000 MHz |
| Length [x] | 0.1 m |
| Length [x] | 3.937 in |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | LSC to Cable |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 1.77 | |
| 10 | $ 1.54 | |||
| 25 | $ 1.48 | |||
Description
General part information
MXLF56 Series
Cable Assembly Coaxial LSC to Cable 0.53mm OD Coaxial Cable 3.937" (100.00mm)
