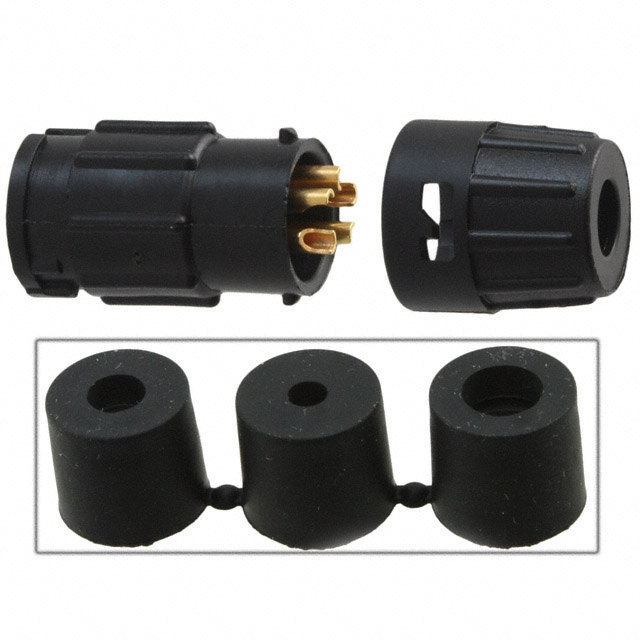

8282-5PG-3DC

Active

Conxall/Switchcraft

CONN RCPT MALE 5P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

8282-5PG-3DC

Active

Conxall/Switchcraft

CONN RCPT MALE 5P GOLD SLDR CUP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	8282-5PG-3DC

Applications	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Bayonet Lock
Features	Backshell
Ingress Protection	Weathertight
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Voltage Rating	600 V

8282-5PG Series

Part	Color	Features	Applications	Cable Opening [custom]	Cable Opening [custom]	Connector Type	Primary Material	Current Rating (Amps)	Ingress Protection	Contact Material	Mounting Type	Voltage Rating	Backshell Material, Plating	Contact Finish - Mating	Orientation	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]
Conxall/Switchcraft 8282-5PG-513	Black	Backshell	Automotive Communication Systems Instrumentation	0.13 in 0.15 in	3.3 mm 3.81 mm	Male Pins Receptacle	Plastic	Varies by Wire Gauge	Weathertight	Brass	Free Hanging (In-Line)	600 V	Nylon Polyamide (PA)	Gold	Keyed	Unshielded	-40 °C	115 °C	Bayonet Lock
Conxall/Switchcraft 8282-5PG-516	Black	Backshell	Automotive Communication Systems Instrumentation			Male Pins Receptacle	Plastic	Varies by Wire Gauge	Weathertight	Brass	Free Hanging (In-Line)	600 V	Nylon Polyamide (PA)	Gold	Keyed	Unshielded	-40 °C	115 °C	Bayonet Lock	0.16 in	0.18 in	4.06 mm	4.57 mm
Conxall/Switchcraft 8282-5PG-321	Black	Backshell	Automotive Communication Systems Instrumentation			Male Pins Receptacle	Plastic	Varies by Wire Gauge	Weathertight	Brass	Free Hanging (In-Line)	600 V	Nylon Polyamide (PA)	Gold	Keyed	Unshielded	-40 °C	115 °C	Bayonet Lock					5.33 mm	5.84 mm	0.21 in	0.23 in
Conxall/Switchcraft 8282-5PG-3DC	Black	Backshell	Automotive Communication Systems Instrumentation			Male Pins Receptacle	Plastic	Varies by Wire Gauge	Weathertight	Brass	Free Hanging (In-Line)	600 V	Nylon Polyamide (PA)	Gold	Keyed	Unshielded	-40 °C	115 °C	Bayonet Lock

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 14.44
		10	$ 12.80
		25	$ 12.31
		50	$ 11.82
		100	$ 11.16
		300	$ 10.18
		500	$ 9.52
		1000	$ 8.73

Description

General part information

8282-5PG Series

5 Position Circular Connector Receptacle, Male Pins Solder Cup

Documents

Technical documentation and resources

No documents available
