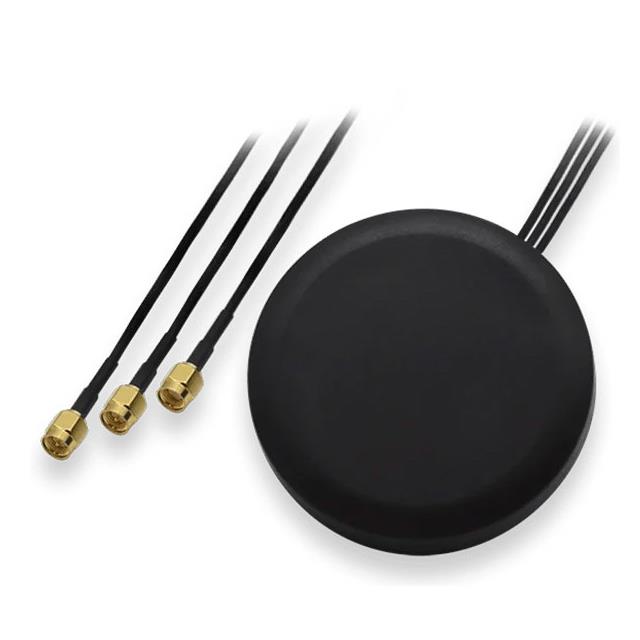

PR1KCS28

Active

Teltonika

COMBO SISO MOBILE/GNSS/WIFI ROOF

Search across all available documentation for this part.

Active

Teltonika

COMBO SISO MOBILE/GNSS/WIFI ROOF

Technical Specifications

Parameters and characteristics for this part

Part	VSWR	Frequency Group	Frequency (Center/Band)	Frequency Range [Max]	Frequency Range [Min]	Features	Features	Mounting Type	Applications	Ingress Protection	Number of Bands	Termination	Gain	Height (Max) [Max]	Height (Max) [Max] [z]	RF Family/Standard	Antenna Type	Height (Max) [Max]	Number of Bands [custom]
Teltonika PR1KRD30	2	Wide Band	2.45 GHz 5.4 GHz	2.5 GHz 5.85 GHz	2.4 GHz 4.95 GHz	1.5 m	Cable	Magnetic	General Purpose	IP50	2	RP-SMA Male	3 dBi	88.5 mm	3.484 in	General ISM	Whip Straight
Teltonika PR1KCO28	2.5 3	Wide Band	1.592 GHz 2.2 GHz 2.44 GHz 5.362 GHz 829 MHz	1.61 GHz 2.48 GHz 2.69 GHz 5.825 GHz 960 MHz	1.575 GHz 1.71 GHz 2.4 GHz 4.9 GHz 698 MHz		Cable - 3m LNA	Screw	GNSS LTE Wi-Fi	IP65		RP-SMA Male (2) SMA Male (3)	2 dBic 3 dBi	53 mm		Navigation WiFi	Dome	2.087 in	5
Teltonika PR1KCL25	3	Wide Band	2.2 GHz 829 MHz	2.69 GHz 960 MHz	1.71 GHz 698 MHz	3 m	Cable	Screw	General Purpose	IP65	2		2.5 dBi	14.6 mm	0.575 in	General ISM	Dome
Teltonika PR1KCS28	1.5	Wide Band	1.8 GHz 1.9 GHz 2.17 GHz 2.2 GHz 2.425 GHz 829 MHz 850 MHz 900 MHz	2.5 GHz 2.69 GHz 960 MHz	1.71 GHz 2.35 GHz 698 MHz		Cable - 3m LNA	Screw	GNSS LTE Wi-Fi	IP65	8	RP-SMA Male (1) SMA Male (2)	2.5 dBi 3.5 dBi	14.6 mm	0.575 in	Navigation WiFi	Dome

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF ANTENNA GNSS, LTE, Wi-Fi Dome RP-SMA Male (1), SMA Male (2) Screw
