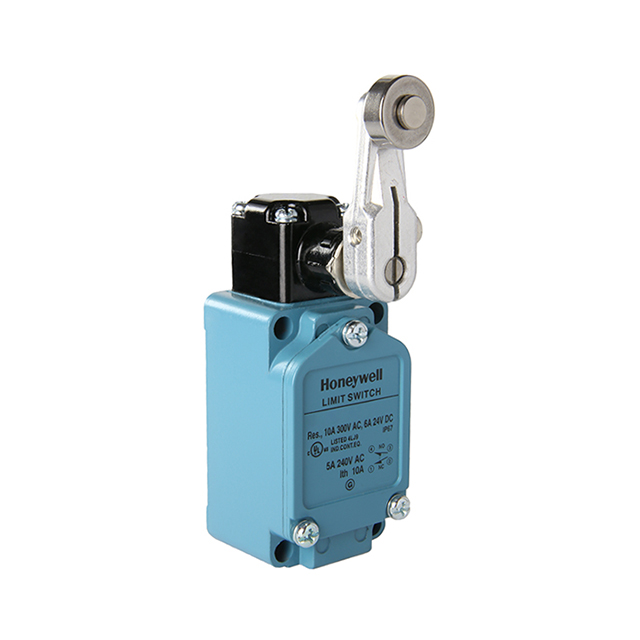

SZL-WLC-A-N

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 10A 125V

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 10A 125V

Technical Specifications

Parameters and characteristics for this part

Part	Operating Position	Differential Travel	Voltage Rating - AC	Actuator Type	Operating Force	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Electrical Life	Mounting Type	Ingress Protection	Circuit	Termination Style	Mechanical Life	Overtravel	Voltage Rating - DC	Pretravel	Operating Position [custom]
Honeywell Sensing and Productivity Solutions SZL-WL-A-LEVER
Honeywell Sensing and Productivity Solutions SZL-WL-C-N
Honeywell Sensing and Productivity Solutions SZL-WL-E-LE
Honeywell Sensing and Productivity Solutions SZL-WLC-A-N	30 °	16 °	125 V	Roller Side Rotary	34 gfm	On-Mom	80 C	-10 °C	750000 Cycles	Chassis Mount	IP67 - Dust Tight Waterproof	SPDT (DB/DM)	Screw Terminal	10000000 Cycles	60 °	30 V	30 °
Honeywell Sensing and Productivity Solutions SZL-WL-A-N		12 °	125 V	Roller Side Rotary	51 gfm	On-Mom	80 C	-10 °C	750000 Cycles	Chassis Mount	IP67 - Dust Tight Waterproof	SPDT (DB/DM)	Screw Terminal	10000000 Cycles	30 °	30 V	20 °	20 °
Honeywell Sensing and Productivity Solutions SZL-WL-B-N

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Switch SPDT (DB/DM) Chassis Mount

Technical documentation and resources
