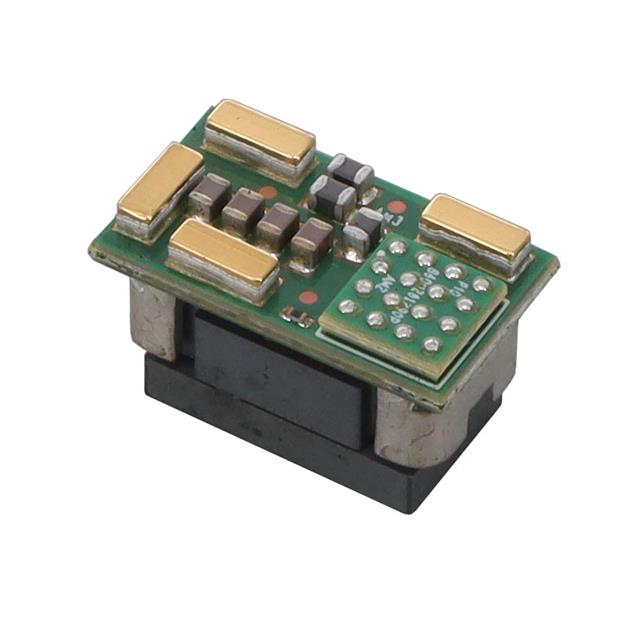

UJT060A0X43-SRPZ
UnknownOmniOn Power™
60A DC/DC CONVERT 0.5-2.1V
Deep-Dive with AI
Search across all available documentation for this part.
UJT060A0X43-SRPZ
UnknownOmniOn Power™
60A DC/DC CONVERT 0.5-2.1V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | UJT060A0X43-SRPZ |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Active High, Enable |
| Current - Output (Max) [Max] | 60 A |
| Efficiency | 91.2 % |
| Features | Remote Sense, Adjustable Output, PMBus™, Remote On/Off |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Module |
| Size / Dimension [x] | 0.8 " |
| Size / Dimension [x] | 20.3 mm |
| Size / Dimension [y] | 11.4 mm |
| Size / Dimension [y] | 0.45 in |
| Size / Dimension [z] | 12.9 mm |
| Size / Dimension [z] | 0.51 in |
| Type | Non-Isolated PoL Module, Digital |
| Voltage - Input (Max) [Max] | 14.4 V |
| Voltage - Input (Min) [Min] | 7.5 V |
| Voltage - Output 1 [Max] | 2 V |
| Voltage - Output 1 [Min] | 0.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 39.92 | |
| 5 | $ 38.43 | |||
| 10 | $ 37.81 | |||
| 25 | $ 37.00 | |||
| 50 | $ 36.40 | |||
| Digi-Reel® | 1 | $ 39.92 | ||
| 5 | $ 38.43 | |||
| 10 | $ 37.81 | |||
| 25 | $ 37.00 | |||
| 50 | $ 36.40 | |||
| Tape & Reel (TR) | 150 | $ 35.46 | ||
Description
General part information
UJT060 Series
Non-Isolated PoL Module, Digital DC DC Converter 1 Output 0.5 ~ 2V 60A 7.5V - 14.4V Input
Documents
Technical documentation and resources
No documents available
