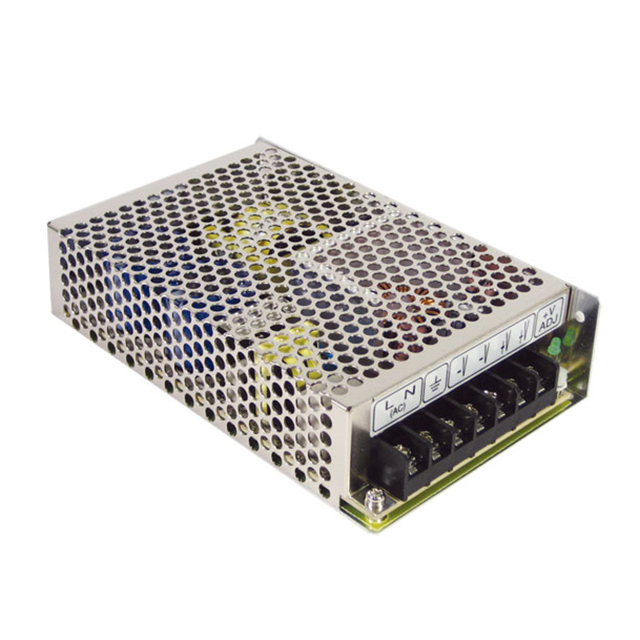

RID-85A

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 5V 12V 88W

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 5V 12V 88W

Technical Specifications

Parameters and characteristics for this part

Specification	RID-85A

Applications	ITE (Commercial)
Approval Agency	CB, CE, cURus, TUV
Current - Output 1	8 A
Current - Output 2	4 A
Efficiency	80 %
Features	Adjustable Output, Universal Input
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	2
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	88 W
Size / Dimension [x]	6.26 in
Size / Dimension [x]	159 mm
Size / Dimension [y]	97 mm
Size / Dimension [y]	3.82 in
Size / Dimension [z]	1.5 "
Size / Dimension [z]	38 mm
Type	Enclosed
Voltage - Input [Max]	264 VAC, 373 VDC
Voltage - Input [Min]	88 VAC, 125 VDC
Voltage - Isolation	3000 V
Voltage - Output 1	5 V
Voltage - Output 2	12 V

Part	Voltage - Output 1	Number of Outputs	Voltage - Isolation	Voltage - Input [Min]	Voltage - Input [Max]	Efficiency	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Features	Current - Output 2	Voltage - Output 2	Applications	Power (Watts)	Type	Mounting Type	Approval Agency	Current - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Minimum Load Required
MEAN WELL USA Inc. RID-85A	5 V	2	3000 V	88 VAC 125 VDC	264 VAC 373 VDC	80 %	97 mm	1.5 "	6.26 in	38 mm	159 mm	3.82 in	Adjustable Output Universal Input	4 A	12 V	ITE (Commercial)	88 W	Enclosed	Chassis Mount	CB CE cURus TUV	8 A	-25 °C	70 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 2 Output 5V 12V 88 ~ 264 VAC, 125 ~ 373 VDC Input
