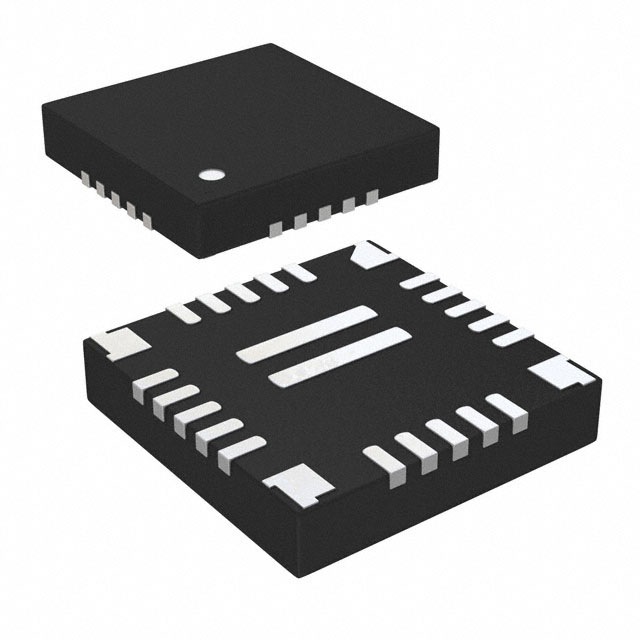

MP2636GR-Z

Active

MONOLITHIC POWER SYSTEMS (MPS)

IC BATT CHG LI-ION 1CELL 30QFN

Search across all available documentation for this part.

Active

MONOLITHIC POWER SYSTEMS (MPS)

IC BATT CHG LI-ION 1CELL 30QFN

Technical Specifications

Parameters and characteristics for this part

Specification	MP2636GR-Z

Battery Chemistry	Lithium Ion/Polymer
Battery Pack Voltage	4.2 V
Charge Current - Max [Max]	3 A
Current - Charging	Constant - Programmable
Fault Protection	Over Temperature, Short Circuit, Over Voltage
Mounting Type	Surface Mount
Number of Cells	1
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Package / Case	30-PowerVFQFN
Programmable Features	Current, Timer
Supplier Device Package	30-QFN (4x4)
Voltage - Supply (Max) [Max]	6 V

Part	Charge Current - Max [Max]	Number of Cells	Package / Case	Battery Chemistry	Voltage - Supply (Max) [Max]	Mounting Type	Battery Pack Voltage	Supplier Device Package	Programmable Features	Operating Temperature [Min]	Operating Temperature [Max]	Current - Charging	Fault Protection
MONOLITHIC POWER SYSTEMS (MPS) MP2636GR-Z	3 A	1	30-PowerVFQFN	Lithium Ion/Polymer	6 V	Surface Mount	4.2 V	30-QFN (4x4)	Current Timer	-40 °C	125 ¯C	Constant - Programmable	Over Temperature Over Voltage Short Circuit

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Charger IC Lithium Ion/Polymer 30-QFN (4x4)
