R605004000

Active

Radiall USA, Inc.

RF / COAXIAL CONNECTOR, BNC COAXIAL, STRAIGHT PLUG, SOLDER, 78 OHM, BRASS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN

R605004000

Active

Radiall USA, Inc.

RF / COAXIAL CONNECTOR, BNC COAXIAL, STRAIGHT PLUG, SOLDER, 78 OHM, BRASS

Deep-Dive with AI

DocumentsTechnical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R605004000

Body Finish	Nickel
Body Material	Brass
Cable Group	Twinaxial 4
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	BR2
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polyetherimide (PEI)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	500 MHz
Housing Color	Silver
Impedance	78 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Clamp

R60500 Series

Part	Body Material	Housing Color	Connector Style	Body Finish	Center Contact Plating	Frequency - Max [Max]	Cable Group	Impedance	Fastening Type	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Dielectric Material	Contact Termination	Connector Type	Number of Ports	Shield Termination	Center Contact Material	Mating Cycles
Radiall USA, Inc. R605004000	Brass	Silver	BR2	Nickel	Gold	500 MHz	Twinaxial 4	78 Ohms	Bayonet Lock	Free Hanging (In-Line)	100 °C	-40 °C	Polyetherimide (PEI)	Solder	Male Pin Plug	1	Clamp	Brass	500
Radiall USA, Inc. R605005000	Beryllium Copper	Silver		Nickel		500 MHz		50 Ohms	Bayonet Lock	Free Hanging (In-Line)	100 °C	-40 °C		Solder	Male Pin Plug	1	Clamp

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 31.70
Newark	Each	1	$ 39.31
		10	$ 37.05
		25	$ 35.09
		50	$ 33.58
		100	$ 31.48
		250	$ 28.31

Description

General part information

R60500 Series

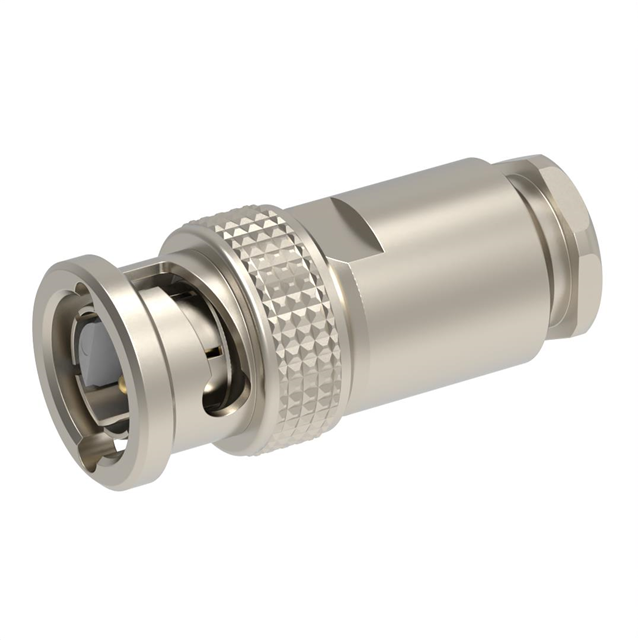

The R605004000 is a 4mm straight BR2 Plug for Armour twin axial cable, clamp type, with silver-plated beryllium copper contacts. This BR2 series plug has polyamide and diallyl phthalate insulation, cable mounting and solder termination.
