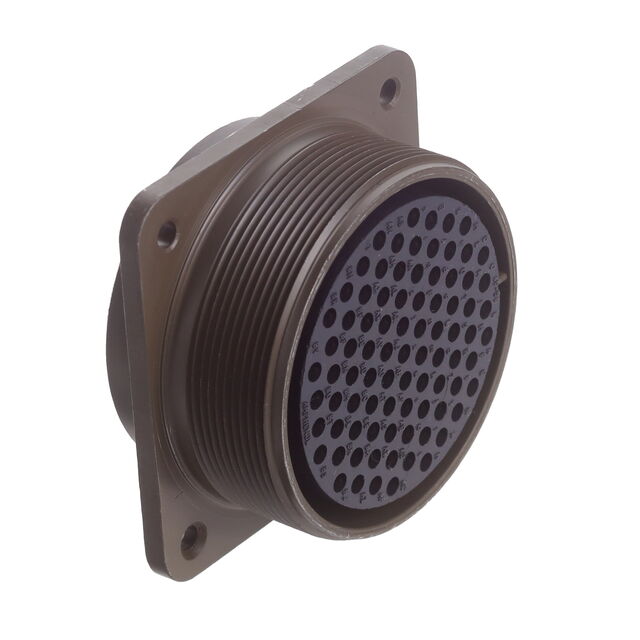

MS3102A40-56S

Active

Amphenol Industrial Operations

MIL-5015 MS/AC THREADED RECEPT

Search across all available documentation for this part.

Active

Amphenol Industrial Operations

MIL-5015 MS/AC THREADED RECEPT

Technical Specifications

Parameters and characteristics for this part

Specification	MS3102A40-56S

Applications	Military, Marine
Color	Olive Drab
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	13 A
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Neoprene
Mounting Feature	Flange
Number of Positions	85
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-5015
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert [Max]	56
Shell Size - Insert [Min]	40
Shielding	Unshielded

Part	Shielding	Ingress Protection	Number of Positions	Grade	Connector Type	Shell Finish	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Color	Qualification	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Current Rating (Amps)	Primary Material	Contact Finish - Mating	Orientation	Mounting Feature	Contact Material	Shell Material	Insert Material
Amphenol Industrial Operations MS3102A40-62P
Amphenol Industrial Operations MS3102A40-56S	Unshielded	Environment Resistant	85	Military	Receptacle Female Sockets	Olive Drab Chromate over Cadmium	Marine Military	-55 °C	125 °C	Olive Drab	MIL-DTL-5015	40	56	13 A	Metal	Silver	N	Flange	Copper Alloy	Aluminum Alloy	Neoprene

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

85 Position Circular Connector Receptacle, Female Sockets Solder Cup
