FISD006F9

Active

Belden Inc.

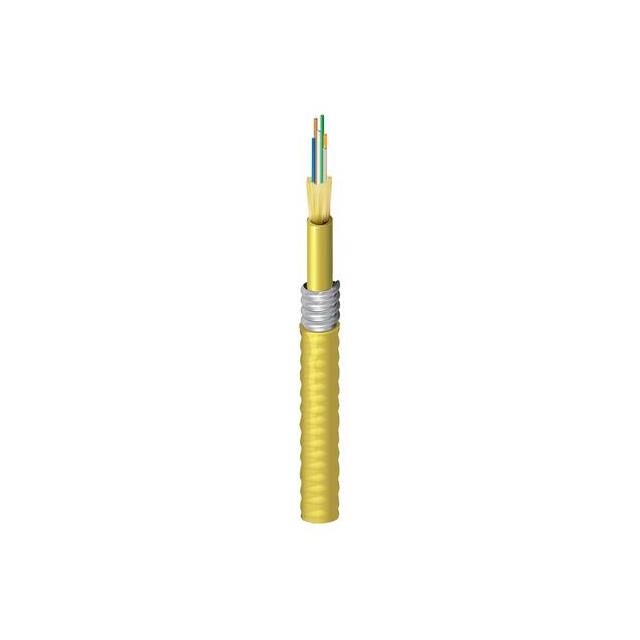

CBL FIBER OPTIC 125UM SINGLEMODE

Search across all available documentation for this part.

Active

Belden Inc.

CBL FIBER OPTIC 125UM SINGLEMODE

Technical Specifications

Parameters and characteristics for this part

Specification	FISD006F9

Cladding Diameter [diameter]	125 µm
Core Diameter [diameter]	9 µm
Features	Armored
Features	6 Fibers
Jacket (Insulation) Diameter [diameter]	12.7 mm
Jacket (Insulation) Diameter [diameter]	0.5 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Yellow
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Ratings	OFCR
Style	Multiple Fibers
Tensile Strength	20.4 kg
Type	Singlemode

Part	Features	Features	Jacket (Insulation) Material	Operating Temperature [Max]	Operating Temperature [Min]	Type	Style	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cladding Diameter [diameter]	Ratings	Core Diameter [diameter]	Tensile Strength	Jacket Color
Belden Inc. FISD006P9	6 Fibers	Rip Cord	Poly-Vinyl Chloride (PVC)	70 °C	0 °C	Singlemode	Multiple Fibers	4.83 mm	0.19 in	125 µm	OFNP	9 µm	20.4 kg	Yellow
Belden Inc. FISD006F9	6 Fibers	Armored	Poly-Vinyl Chloride (PVC)	70 °C	-20 C	Singlemode	Multiple Fibers	12.7 mm	0.5 in	125 µm	OFCR	9 µm	20.4 kg	Yellow

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1640	$ 1.25

General part information

Fiber Optic Cable Yellow Singlemode 125µm
